COL-00794-019-25-GF-S4 - Datasheet

MBA

Category Information

Collars - Shaft - Gripfast - 304 Stainless Steel

304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.

  • 304 Stainless Body, Retention Ring, Balls and Springs.

Product Data

  • Suitable Shaft Size (d) : 7.938 mm
    (Equiv. 0.313 in.)
  • Outside Diameter (D) 18.80 mm
    (Equiv. 0.74 in.)
  • Overall Width (S) 25.4 mm
    (Equiv. 1 in.)
  • Sleeve Length (D) 16.205 mm
  • Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • A7X34-0312
    • A7X340312
    • SMI-312SS
    • SMI312SS
    View full details

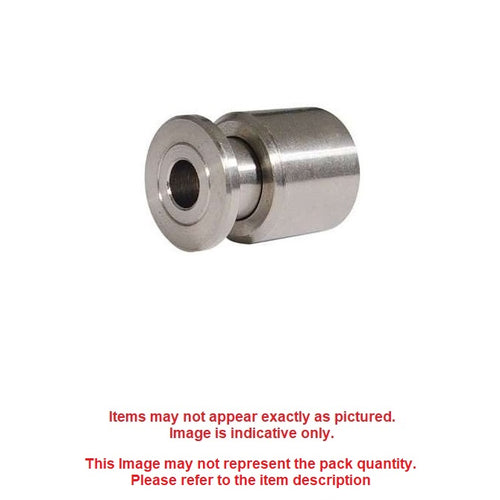

    COL-00794-019-25-GF-S4DiagramCOL-00794-019-25-GF-S4Image
