COL-05080-069-53-GF-S4 - Datasheet
ENQUIRE
Category Information

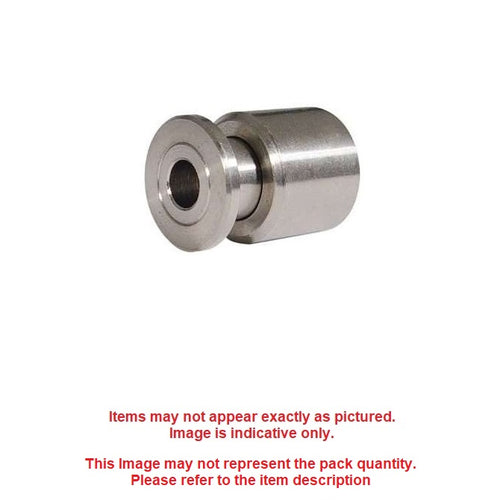

Collars - Shaft - Gripfast - 304 Stainless Steel304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.
- Simple, ring-shaped component, typically made of metal or plastic, that fastens around a round shaft to hold other parts in place or to act as a mechanical stop.
- Essential in power transmission applications for securing items like bearings, sprockets, and gear assemblies.
- 304 Stainless Body, Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d) : 50.800 mm
- Outside Diameter (D) 69.10 mm
- Overall Width (S) 52.7 mm
- Sleeve Length (D) 33.909 mm
- Material Stainless Steel 304 (Similar to A2 or 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A7X342000
- A7X34-2000
