Miniature Bearings Australia
COL-04445-069-53-GF-S4 - Datasheet
MBA
Category Information

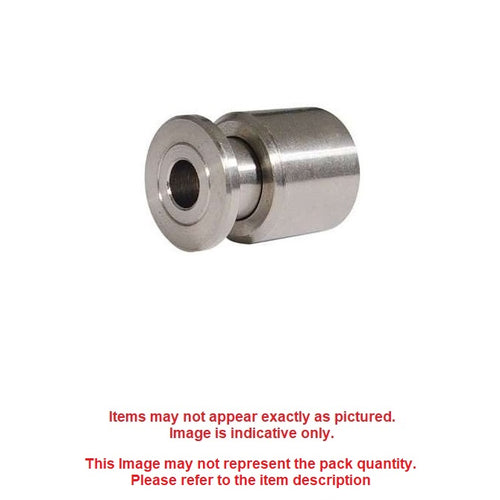

Collars - Shaft - Gripfast - 304 Stainless Steel304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.
- 304 Stainless Body, Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
44.450
mm
(Equiv. 1.75 in.) - Outside Diameter (D)
69.10
mm
(Equiv. 2.72 in.) - Overall Width (S)
52.7
mm
(Equiv. 2.075 in.) - Sleeve Length (D) 33.909 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A7X34-1750
- A7X341750
