COL-03810-056-46-GF-S4 - Datasheet
MBA
Category Information

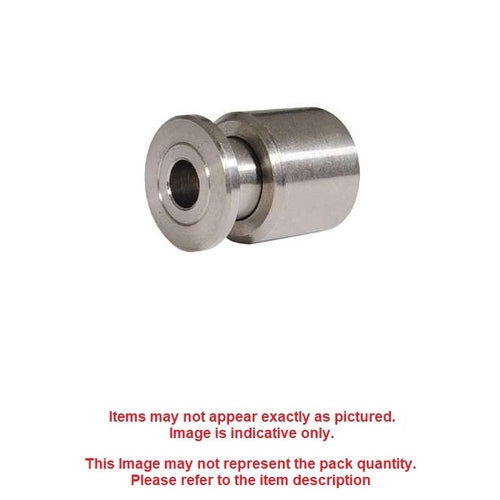

Collars - Shaft - Gripfast - 304 Stainless Steel304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.
- 304 Stainless Body, Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
38.100
mm
(Equiv. 1.5 in.) - Outside Diameter (D)
55.90
mm
(Equiv. 2.201 in.) - Overall Width (S)
45.7
mm
(Equiv. 1.799 in.) - Sleeve Length (D) 33.909 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A7X341500
- A7X34-1500
- SMI1500SS
- SMI-1500SS
