Miniature Bearings Australia
COL-02540-047-51-GF-S4 - Datasheet
MBA
Category Information

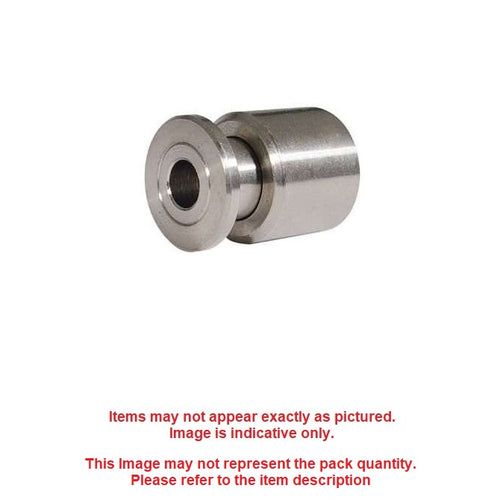

Collars - Shaft - Gripfast - 304 Stainless Steel304 Stainless Steel Gripfast Shaft Collars. Self Locking - Quick Release.
- 304 Stainless Body, Retention Ring, Balls and Springs.
Product Data
- Suitable Shaft Size (d)
:
25.400
mm
(Equiv. 1 in.) - Outside Diameter (D)
47.40
mm
(Equiv. 1.866 in.) - Overall Width (S)
50.8
mm
(Equiv. 2 in.) - Sleeve Length (D) 33.655 mm
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- A7X34-1000
- A7X341000
- SMI-1000SS
- SMI1000SS
