Miniature Bearings Australia
COL-01600-028-45-FL-S3 - Datasheet
MBA
Category Information

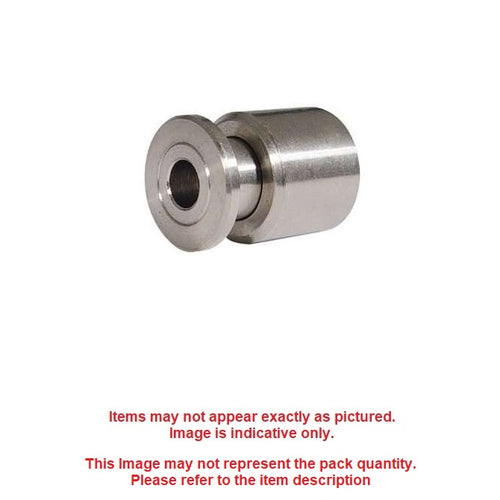

Collars - Shaft - Fastlock- No tools required.
- Usable for Nonhardened Shafts.
- Inner body and Outer sleeve: 303 Stainless, Balls: 440C Stainless, Spring: 302 Stainless.
Product Data
- Shaft Size (d)
:
16.000
mm
(Equiv. 0.63 in.) - Outside Diameter (A)
28.00
mm
(Equiv. 1.102 in.) - Overall Width (S)
45.0
mm
(Equiv. 1.772 in.)
Product Compliance and Data
Additional Resources
Cross References
- S25FLYM0630
