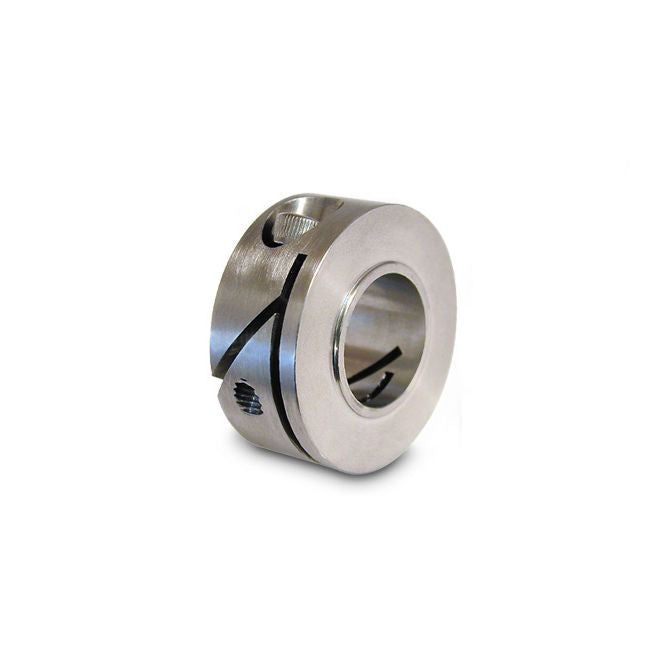

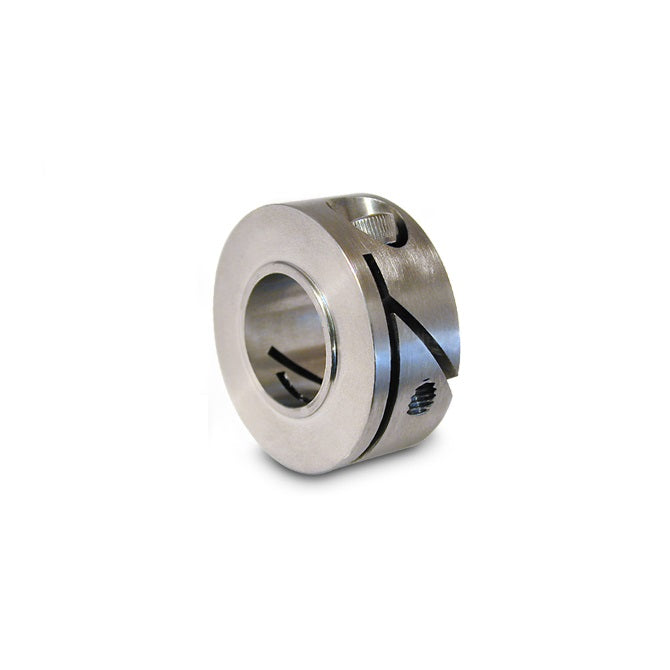

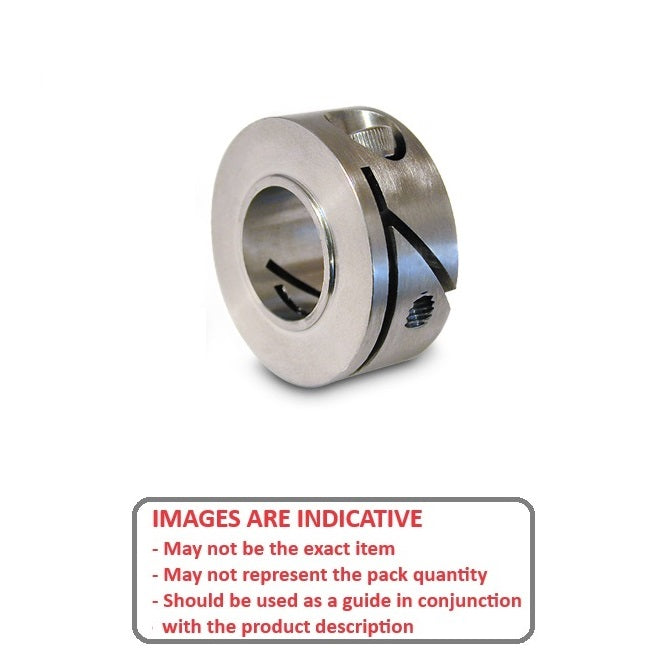

COL-00635-016-09-FC-S3 - Datasheet

MBA

Product Data

• Shaft Size (d) : 6.350 mm _{+ 0.025 / - 0.000}
  (Equiv. 0.25 in.)
• Outside Diameter (D) 16.00 mm
  (Equiv. 0.63 in.)
• Overall Width (S) 9.0 mm
  (Equiv. 0.354 in.)
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FY9PC25021
• S25FY9-PC25021
