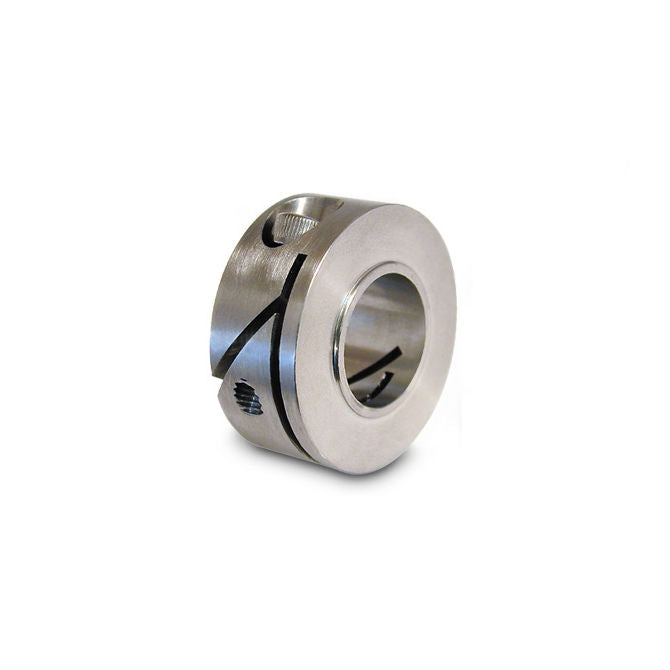

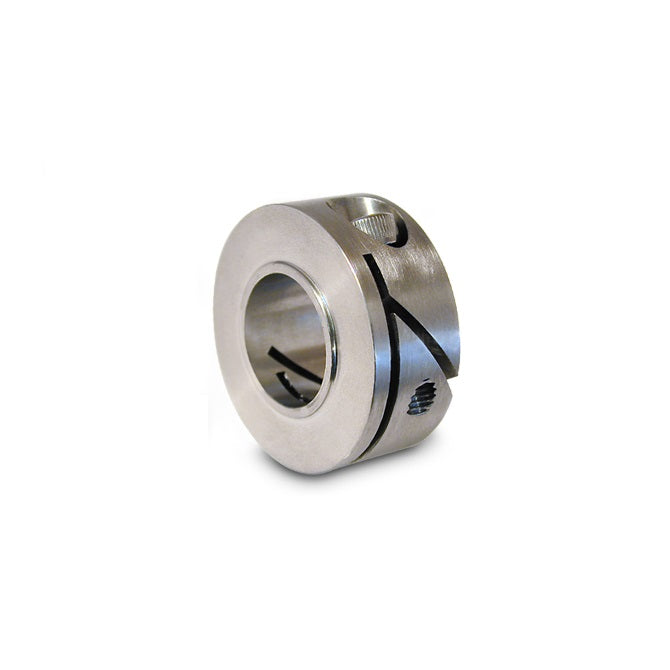

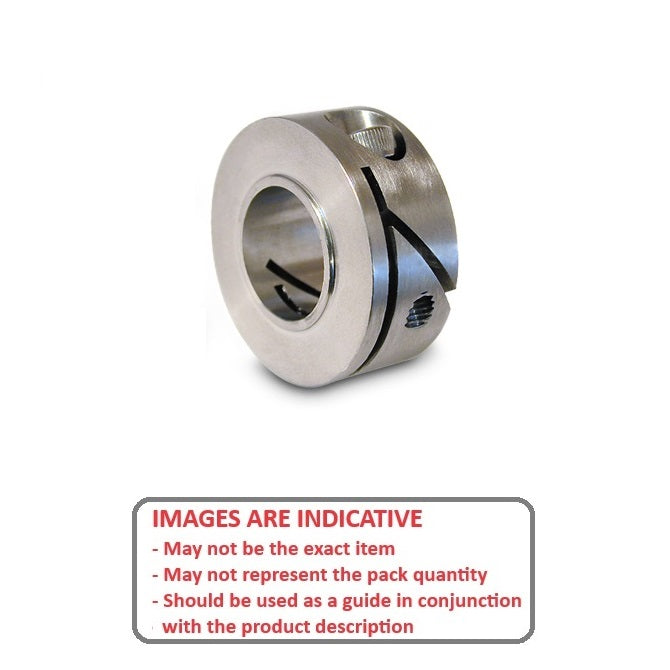

COL-00500-016-09-FC-S3 - Datasheet

MBA

Product Data

• Shaft Size (d) : 5.000 mm _{+0.018/-0.000}
  (Equiv. 0.197 in.)
• Outside Diameter (D) 16.00 mm
  (Equiv. 0.63 in.)
• Overall Width (S) 9.0 mm
  (Equiv. 0.354 in.)
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FY9MPC0516
