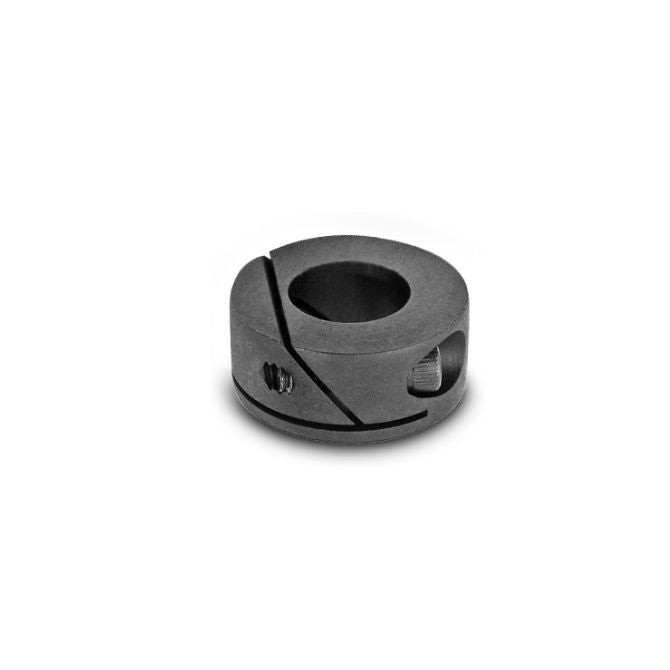

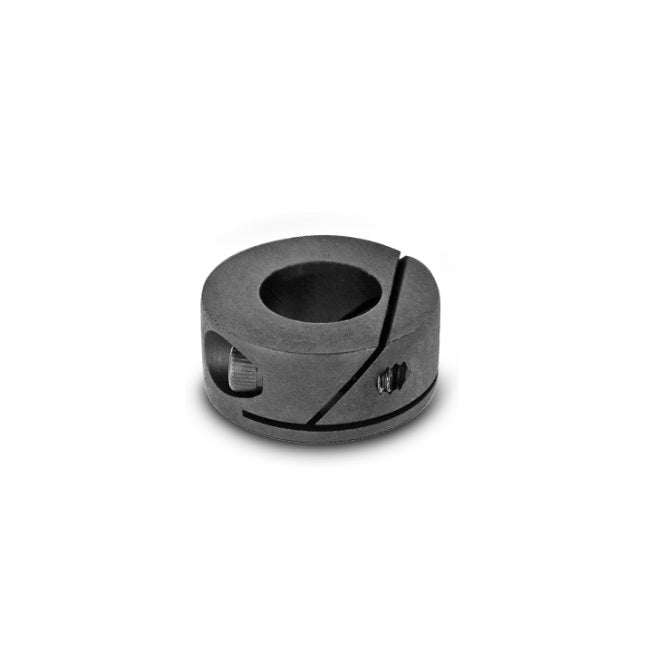

COL-00500-016-09-FC-BRB - Datasheet

MBA

Product Data

• Shaft Size (d) : 5.000 mm _{+0.018/-0.000}
  (Equiv. 0.197 in.)
• Outside Diameter (D) 16.00 mm
  (Equiv. 0.63 in.)
• Overall Width (S) 9.0 mm
  (Equiv. 0.354 in.)
• Material Brass - Black Oxide Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FB9MPC0516
