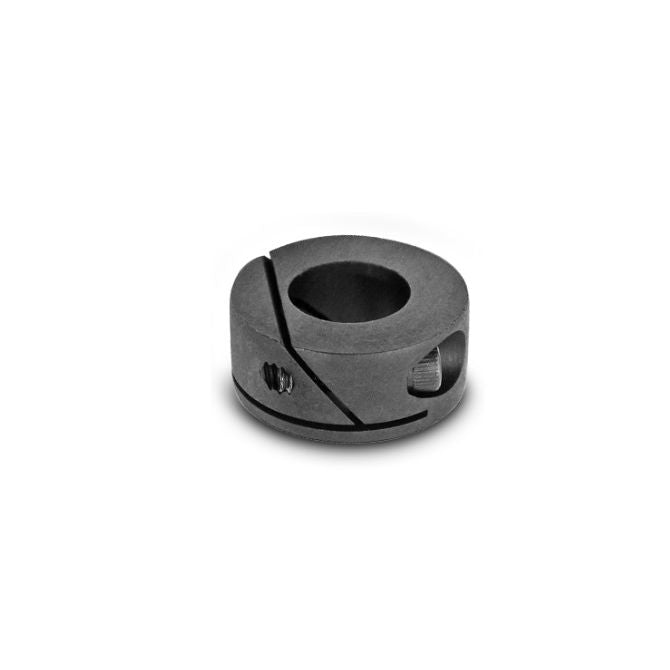

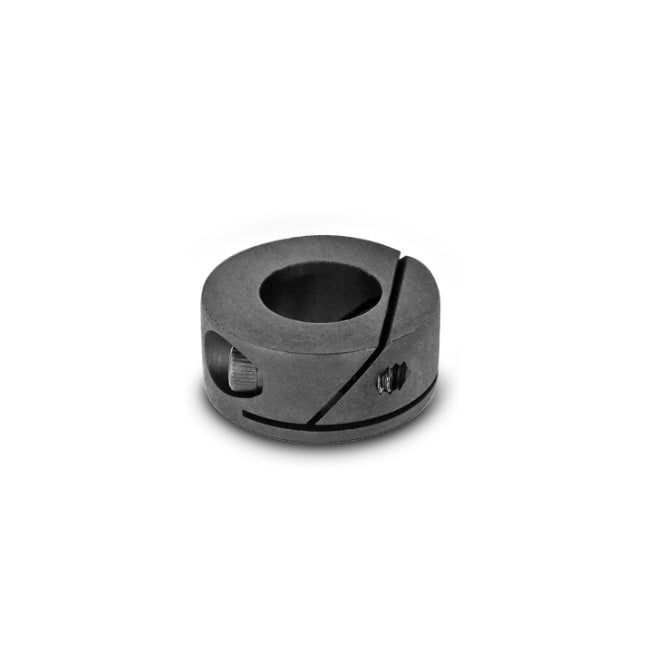

COL-00318-011-07-FC-BRB - Datasheet

MBA

Product Data

• Shaft Size (d) : 3.175 mm _{+ 0.025 / - 0.000}
  (Equiv. 0.125 in.)
• Outside Diameter (D) 11.00 mm
  (Equiv. 0.433 in.)
• Overall Width (S) 7.0 mm
  (Equiv. 0.276 in.)
• Material Brass With Black Oxide

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FB9PC12515
• S25FB9-PC12515
