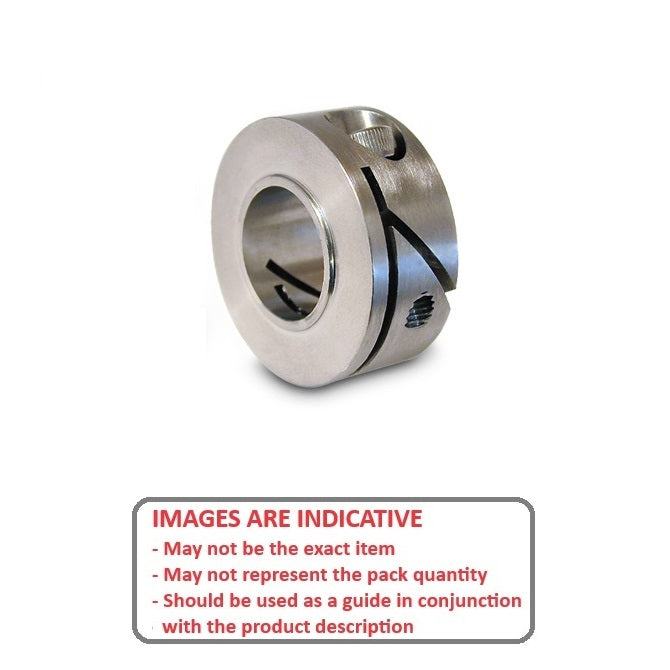

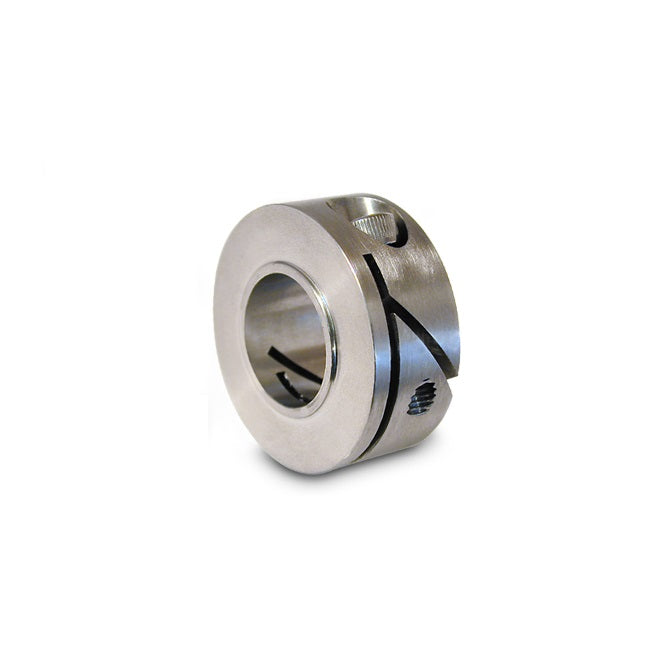

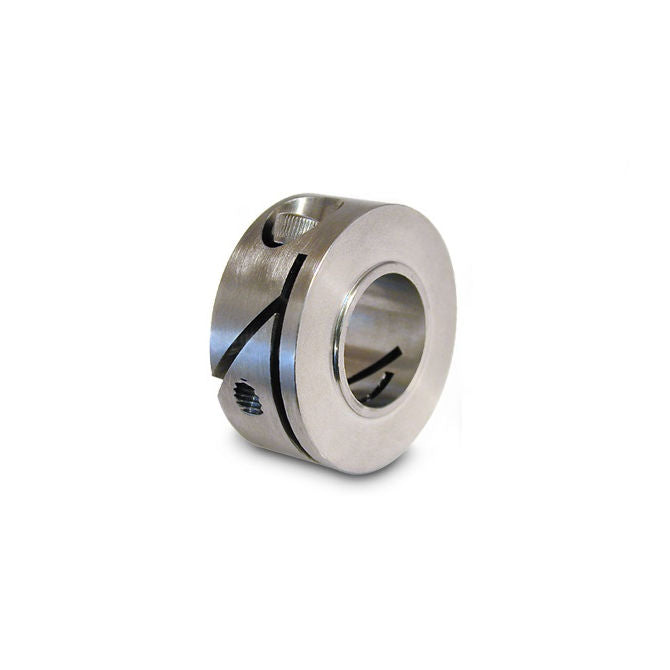

COL-01905-038-16-FC-S3 - Datasheet

MBA

Product Data

• Shaft Size (d) : 19.050 mm _{+ 0.025 / - 0.000}
  (Equiv. 0.75 in.)
• Outside Diameter (D) 38.00 mm
  (Equiv. 1.496 in.)
• Overall Width (S) 16.0 mm
  (Equiv. 0.63 in.)
• Material Stainless Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FY9PC75047
• S25FY9-PC75047
