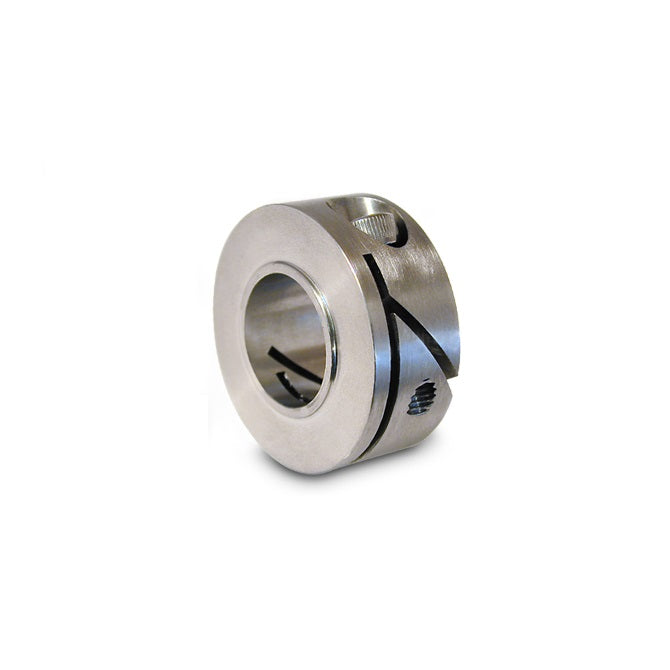

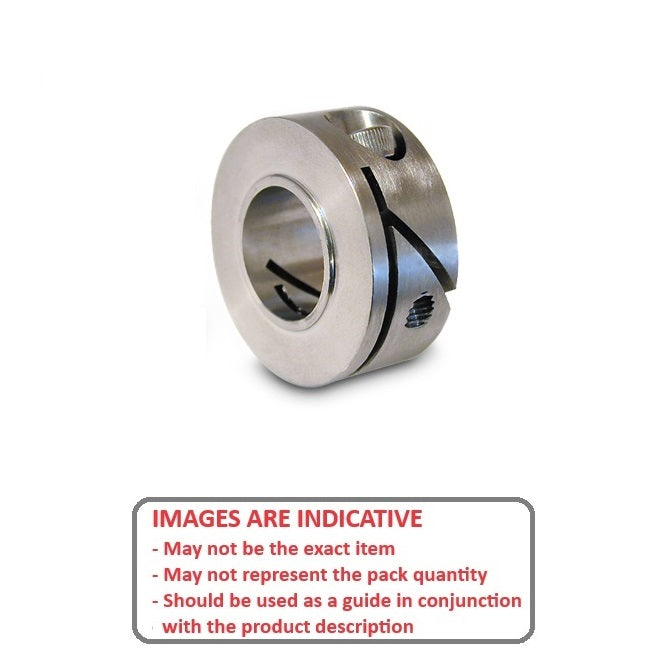

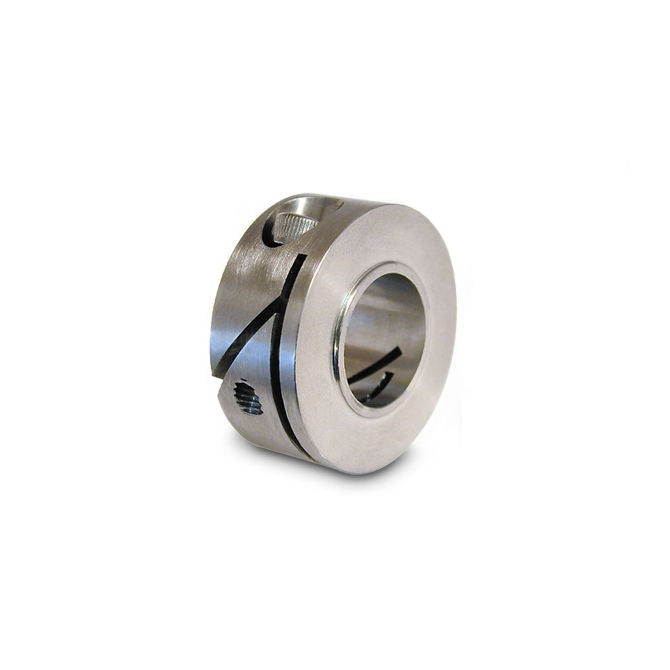

COL-01200-025-11-FC-S3 - Datasheet

MBA

Product Data

• Shaft Size (d) : 12.000 mm _{+0.027/-0.000}
  (Equiv. 0.472 in.)
• Outside Diameter (D) 25.00 mm
  (Equiv. 0.984 in.)
• Overall Width (S) 11.0 mm
  (Equiv. 0.433 in.)
• Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FY9MPC1225
