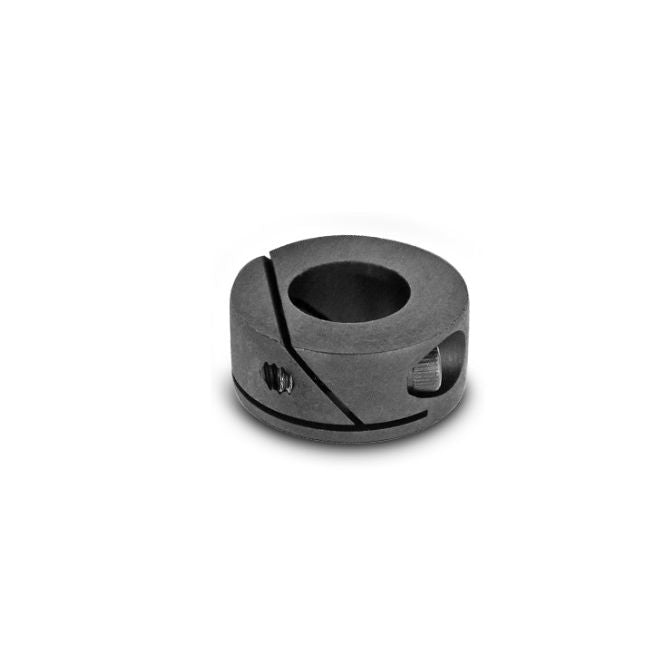

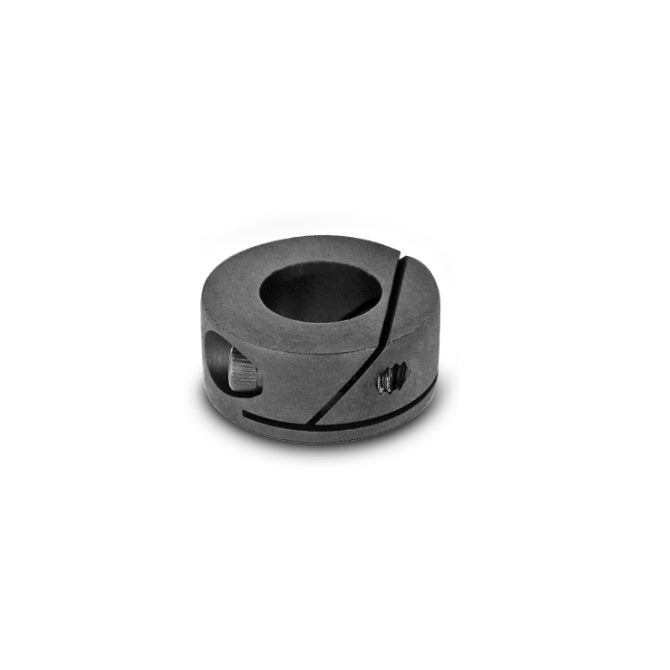

COL-01000-025-11-FC-BRB - Datasheet

MBA

Product Data

• Shaft Size (d) : 10.000 mm _{+0.027/-0.000}
  (Equiv. 0.394 in.)
• Outside Diameter (D) 25.00 mm
  (Equiv. 0.984 in.)
• Overall Width (S) 11.0 mm
  (Equiv. 0.433 in.)
• Material Brass - Black Oxide Finish

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Measuring Small Parts
• Metalworking Resource Guide

Cross References

• S25FB9MPC1025
