CCI-53000-C - Datasheet
MBA
Category Information

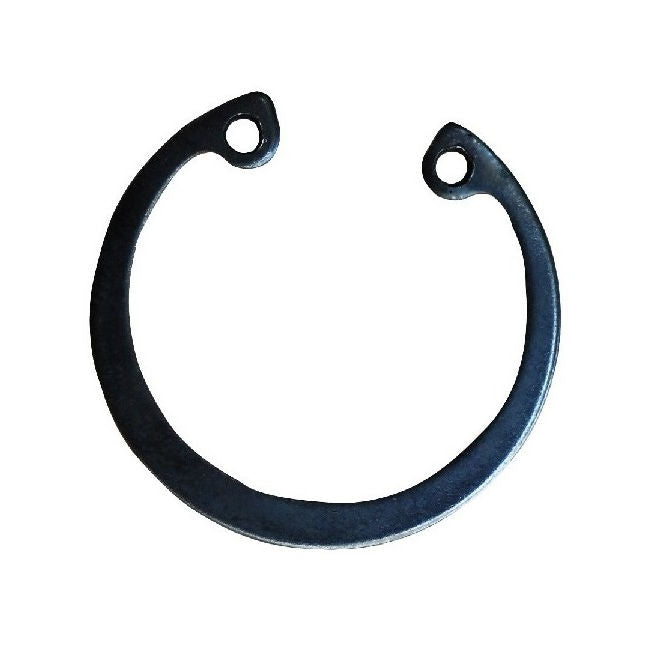

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
530.00
mm
(Equiv. 20.866 in.) - Clip Thickness (T)
8.00
mm
+ 1.00 / - 0.00
(Equiv. 0.315 in.) - Groove Dia. (Dg)
544.00
mm
+ 0.00 / - 0.15
(Equiv. 21.417 in.) - Approx. Loose Circlip OD (Dr) 555.00 mm + 3.00 / - 1.50
- Groove Width (W) 8.20 mm + 0.20 / - 0.00
- Standard DIN472
- Material Carbon Spring Steel phosphate and oil finish
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-530
- Bossard BN-822-530
- Waldes D1300-530
- NoCor DHO-530
- Rotor Clip DHO-530
- Seeger J-530
- Seeger J530X8
- 13005300APP
- 1300-5300APP
- D1300-5300APP
- D1300530
- D13005300APP
- DHO530
- 472530
- BN822530
