CCI-32500-C - Datasheet
MBA
Category Information

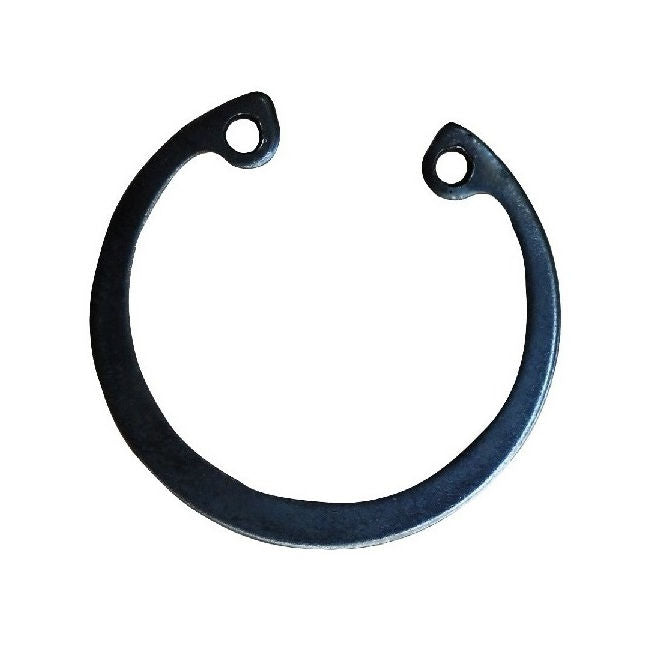

Retaining Rings - Internal - Circlips - Standard - Carbon SteelCarbon Steel Standard Circlips Internal Retaining Rings. Imperial and metric DIN471 and 472 / D1300 / N1300 / Seeger J and JS. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Plain carbon steel
- Tolerances on request.
Product Data
- Housing Bore (B)
:
325.00
mm
(Equiv. 12.795 in.) - Clip Thickness (T)
6.00
mm
+ 0.89 / - 0.00
(Equiv. 0.236 in.) - Groove Dia. (Dg)
335.00
mm
+ 0.00 / - 0.15
(Equiv. 13.189 in.) - Approx. Loose Circlip OD (Dr) 342.00 mm + 2.00 / - 0.90
- Groove Width (W) 6.20 mm + 0.20 / - 0.00
- Standard DIN472
- Material Carbon Spring Steel phosphate and oil finish
Product Compliance and Data
Additional Resources
Cross References
- Ellison 472-325
- Bossard BN-822-325
- Waldes D1300-325
- NoCor DHO-325
- Rotor Clip DHO-325
- Seeger J-325
- Seeger J325X6
- 13003250APP
- 1300-3250APP
- D1300325
- D13003250APP
- D1300-3250APP
- DHO325
- 472325
- BN822325
