CBLU200-0150-J - Datasheet

MBA

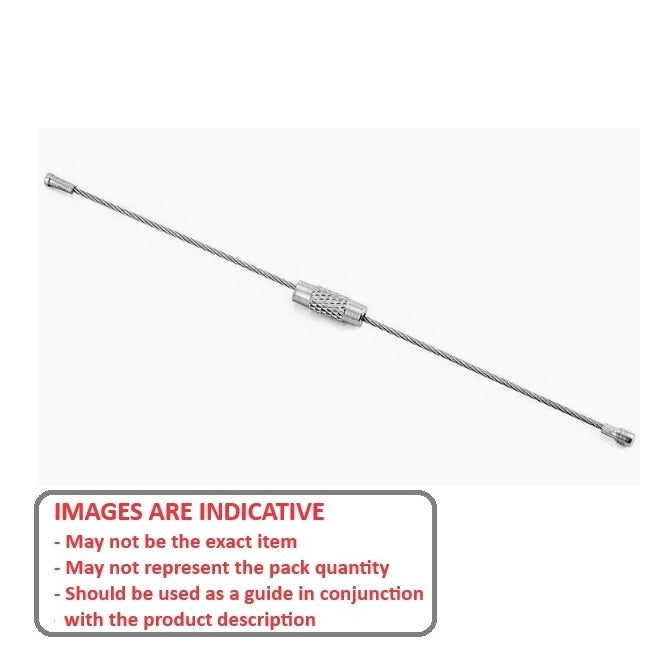

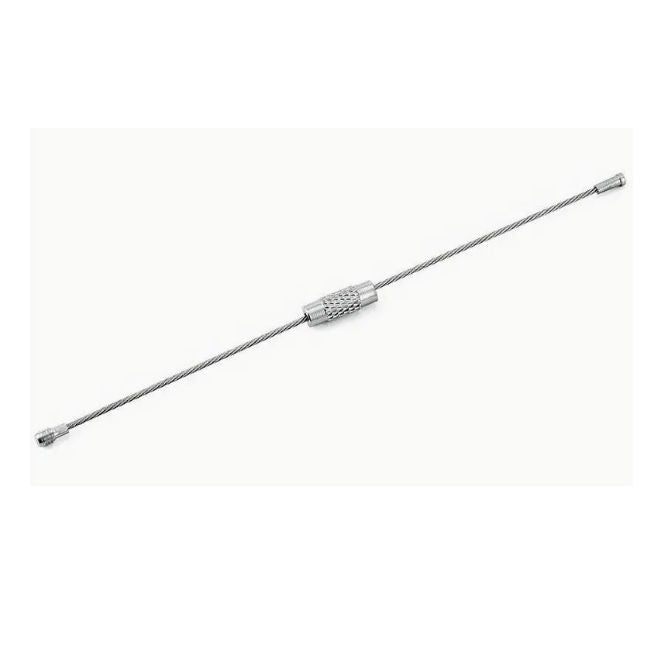

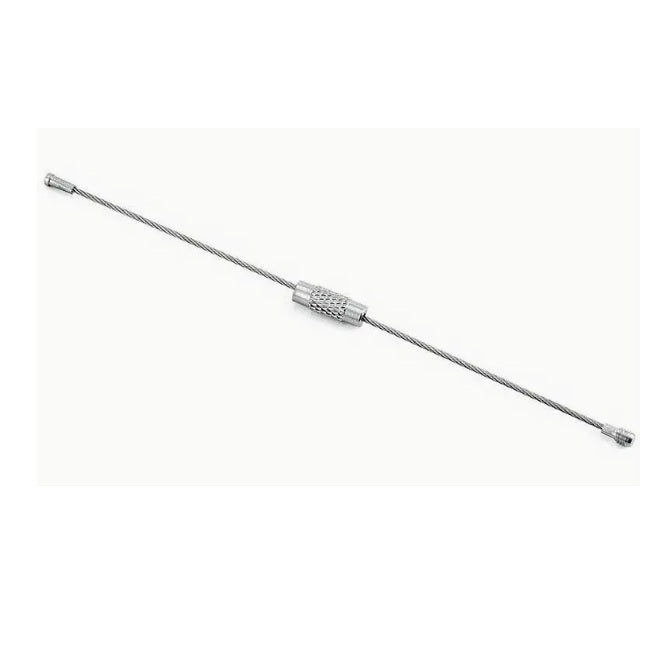

Uncoated Miniature Cable Cable and Accessories. Lengths will be supplied continuous to a maximum of 3mtrs (ie, 10 x 300mm supplied as 3mtr length)

An expanded range may be available on special order. Please enquire.
Sold per length. Multiple quantities will be supplied in a continuous length up to 3mtr maximum.
Also called bowden cable.

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

Overall Diameter : 2.00 mm
(Equiv. 0.079 in.)
Cable Diameter (A) 2.00 mm
(Equiv. 0.079 in.)
Breaking Strength Not Specified kg
Length Approx 150mm Including Joiners
Additional Complete with threaded joiner at each end for connecting in a loop or multiple pieces end to end
Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

Country of Origin: CN
