VT116RS - Datasheet
MBA
Category Information

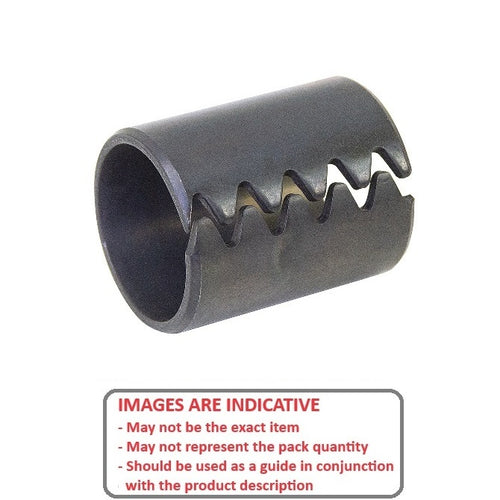

Bushings - TensionTension Bushings. Like a heavy duty roll pin.
- Made of a high carbon spring steel with high elasticity, resilience and wear characteristics.
- Designed to replace solid steel tubular and case hardened bushings because they are close tolerance, self-retaining and through hard.
- Insertion can be easily accomplished with a hammer and drift.
- Ideal for high load/low-speed operation in articulating or continuous applications.
Product Data

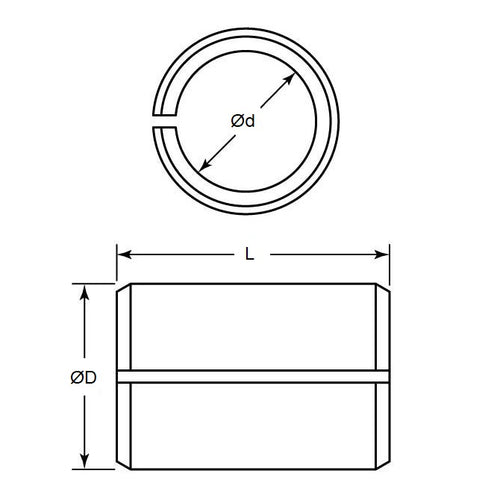

- Inside Diameter (ID)
:
38.100
mm
(Equiv. 1.5 in.) - Outside Diameter (OD)
44.450
mm
(Equiv. 1.75 in.) - Length (L)
19.050
mm
(Equiv. 0.75 in.) - ID after insertion 38.18 - 38.28 mm
- OD before insertion 44.96 - 45.47 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- VT-116
- VT116
