BP0097-0150-0120-DP - Datasheet
MBA
Category Information

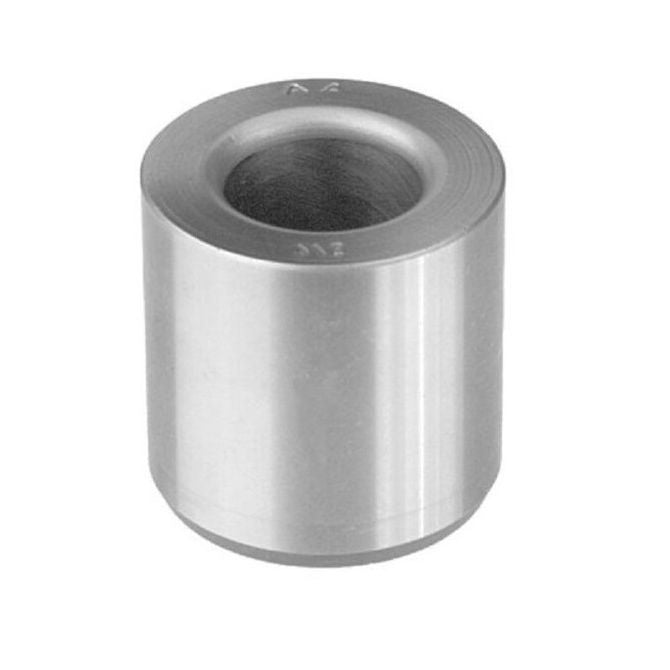

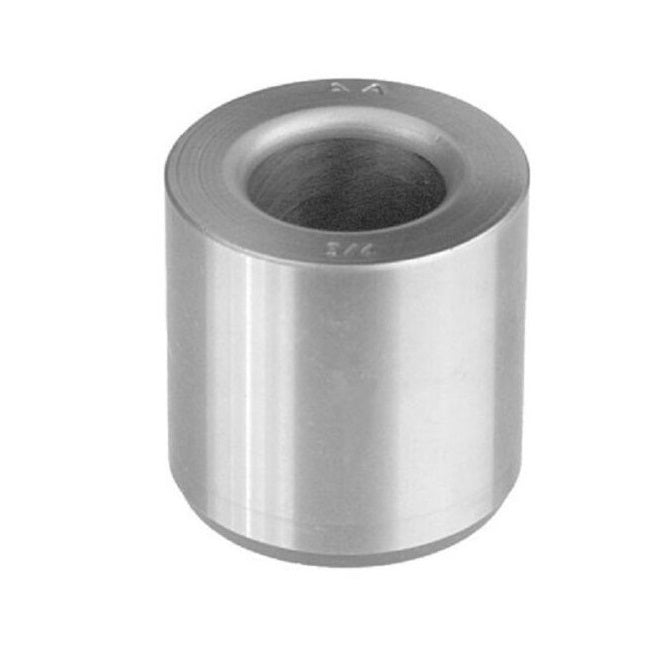

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Designed to guide, position, and support the cutting tool in a metalworking jig. Hardened steel.
- Hardness: RC 62-64
Product Data
- Outside Diameter (OD)
:
15.000
mm
+ 0.028 / + 0.039
(Equiv. 0.591 in.) - Drill Size
9.700
mm
+ 0.005 / + 0.014
(Equiv. 0.382 in.) - Length
12.000
mm
(Equiv. 0.472 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- DM-09712
- DM09712
