BP0055-0100-0200-DP - Datasheet
MBA
Category Information

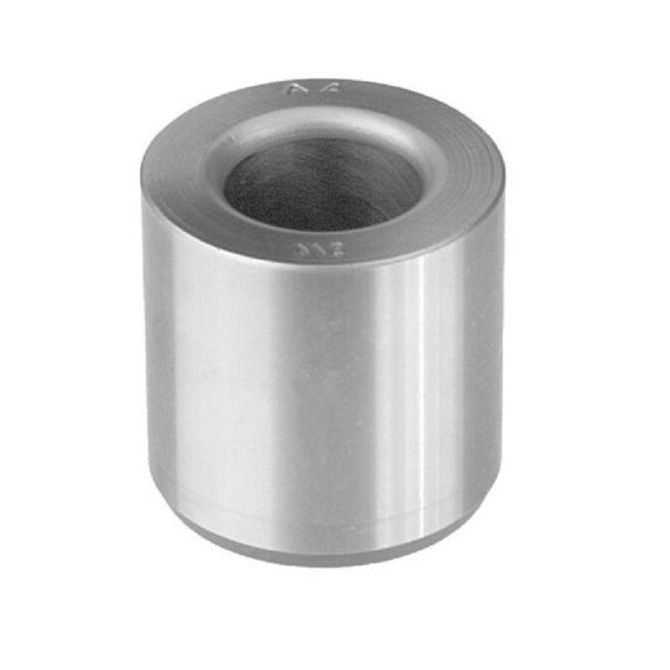

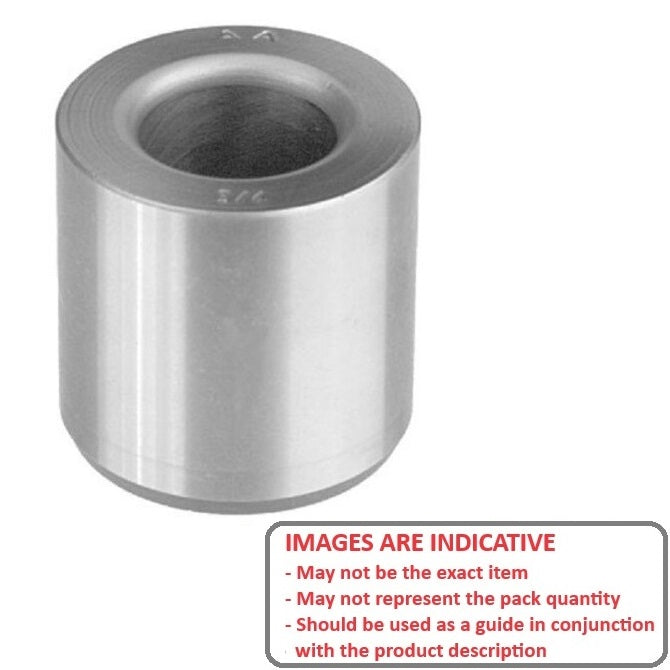

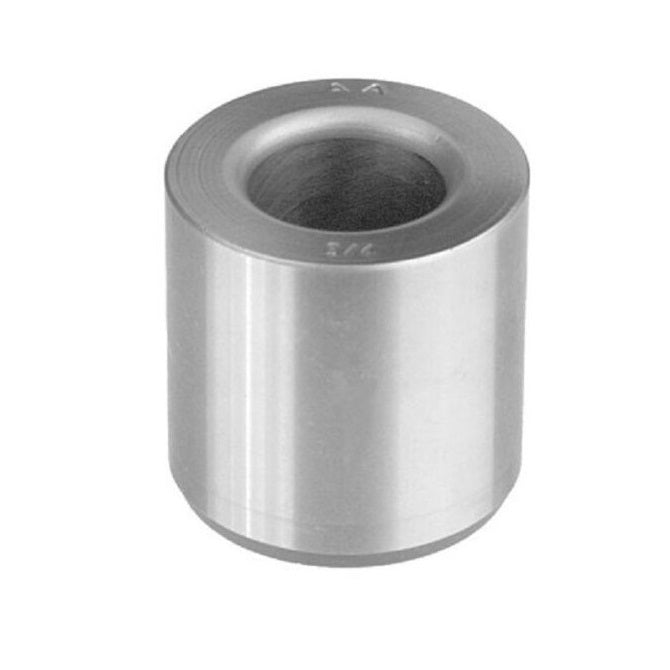

Bushings - Drill - Plain - Press Fit - Hardened SteelHardened Steel Press Fit Plain Drill Bushings. Unflanged press fit selection. Harden steel
- Hardened metal component that provides a precise guide for cutting tools, ensuring accurate and repeatable hole placement in jigs and fixtures.
- Constrains the drill bit, it reduces tool deflection and tool wear, leading to more consistent holes and longer tool life.
- Hardness: RC 62-64
Product Data

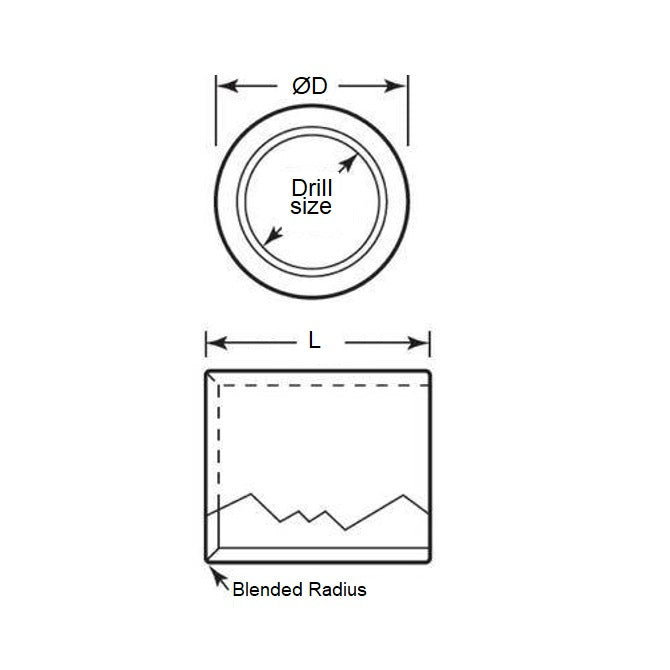

- Outside Diameter (OD)
:
10.000
mm
+ 0.023 / + 0.032
(Equiv. 0.394 in.) - Drill Size
5.500
mm
+ 0.004 / + 0.012
(Equiv. 0.217 in.) - Length
20.000
mm
(Equiv. 0.787 in.) - Material Carbon Steel - Hardened
Product Compliance and Data
Additional Resources
Cross References
- DM-05520
- DM05520
