Miniature Bearings Australia
KF000-099-6L-ST - Datasheet
MBA
Category Information

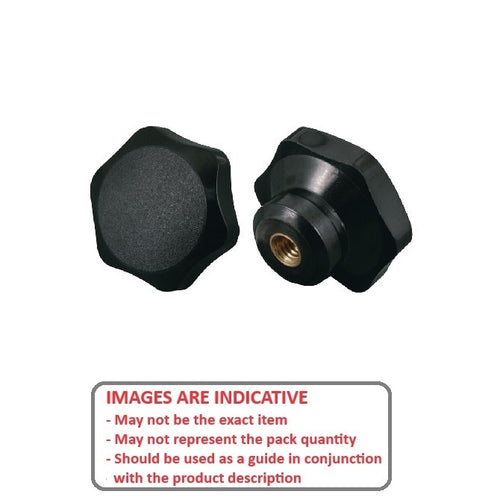

Knobs - Lobe - Six Lobe - Female - StandardStandard Female Six Lobe Lobe Knobs. Also see star knobs
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size : Solid

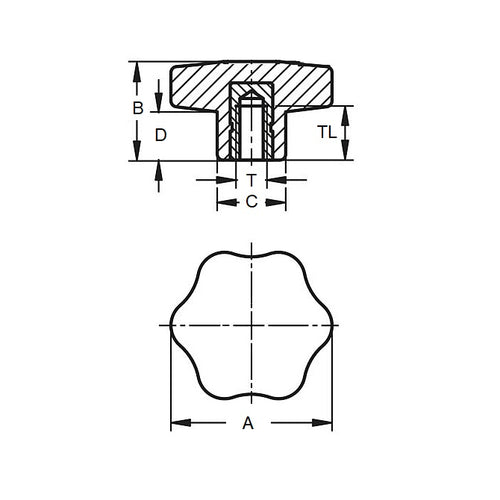

- Head Diameter (A) 99.06 mm
- Thread Length 34.0 mm
- Colour Black
- Hub Diameter (C) 36.07 mm
- Hub Length (F) 43.94 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® KHN-45
- KHN45
