B-L9-0033-0381-NFB - Datasheet
MBA
Category Information

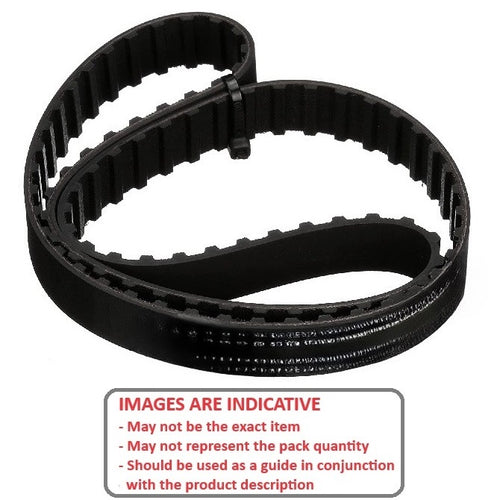

Belts - Inch Timing - 9.525mm Pitch L - 38.1mm Wide38.1mm Wide 9.525mm Pitch L Inch Timing Belts. Standard Series Timing Belts 9.525mm or 0.375 inch pitch.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 3.25mm
- Tooth Height (H) - 1.90mm
- Belt Height (W) - 3.56mm - Corner Radii ( r ) - 0.5mm
- Pitch (P) - 9.525mm (0.375 inch)
Product Data
- Number of Teeth : 33
- Length
314.325
mm
(Equiv. 12.375 in.) - Width
38.1
mm
(Equiv. 1.5 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 6666 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Tooth Angle (A) 40 °
- Material Nylon Covered Neoprene Rubber with Fibreglass
Product Compliance and Data
Additional Resources
Cross References
- Gates 124L150
- Misumi C-TBN124L150
- CTBN124L150
