BD-050H-0080-0090-NFB - Datasheet
MBA
Category Information

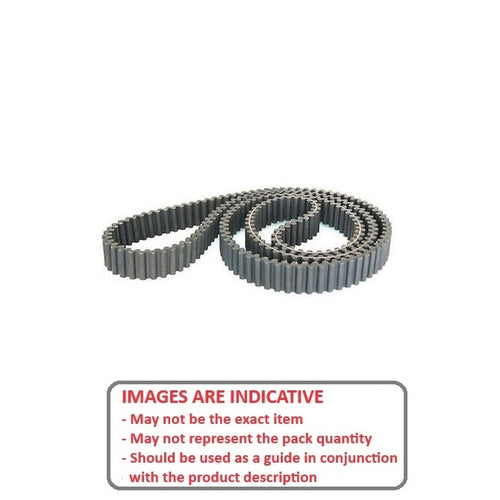

Belts - Timing 5.000mm Pitch - HTD - 9mm Wide - Double SidedDouble Sided 9mm Wide HTD Timing 5.000mm Pitch Belts. HTD Series Metric Timing Belts Double Sided.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

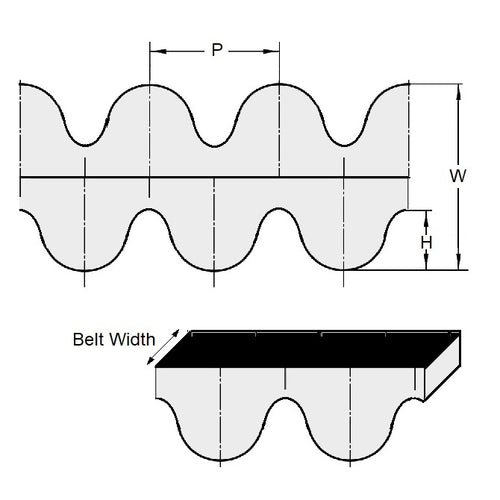

- Tooth Length (T) - 3.05mm
- Tooth Height (H) - 2.08mm
- Belt Height (W) - 5.3mm
- Pitch (P) - 5mm
Product Data
- Number of Teeth : 80
- Length
400
mm
(Equiv. 15.748 in.) - Width
9.0
mm
(Equiv. 0.354 in.) - Reinforcement Fibreglass
- Appearance Black
- Breaking Strength 2844 N
- Min Temperature (C) -34 Deg C
- Max Temperature (C) 85 Deg C
- Material Nylon Covered Neoprene Rubber with Fibreglass
Product Compliance and Data
Additional Resources
Cross References
- Gates 400-D5M-09
- A6R25MD080090
- 400D5M09
