Double Sided 25mm Wide HTD Timing 5.000mm Pitch Belts. HTD Series Metric Timing Belts Double Sided.

• Timing belts combined with timing pulleys, provide power transmission without slippage.
• Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
• Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
• Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

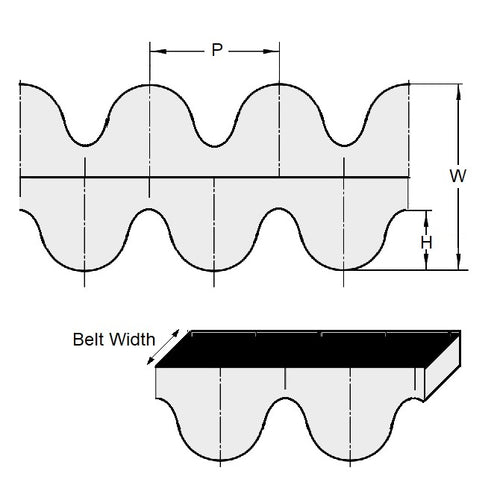

• Tooth Length (T) - 3.05mm
• Tooth Height (H) - 2.08mm
• Belt Height (W) - 5.3mm
• Pitch (P) - 5mm
