MBN5-440 - Datasheet

MBA

Category Information

Belts - Round Seamless Urethane

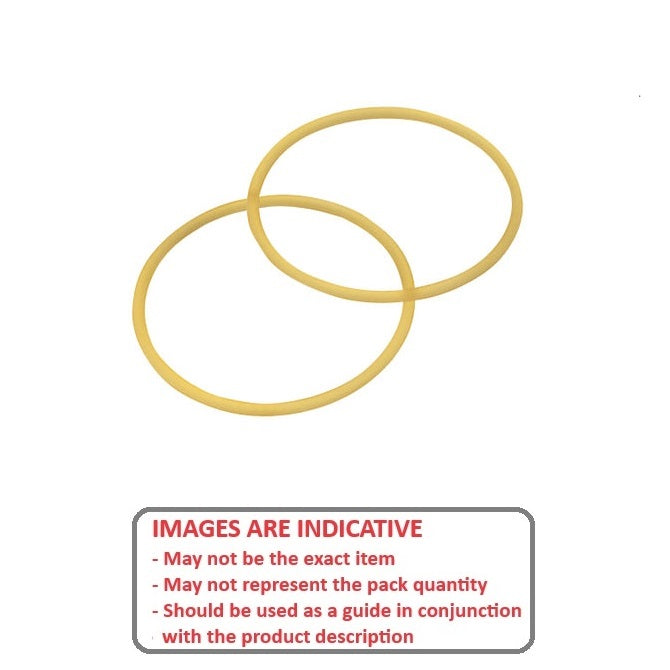

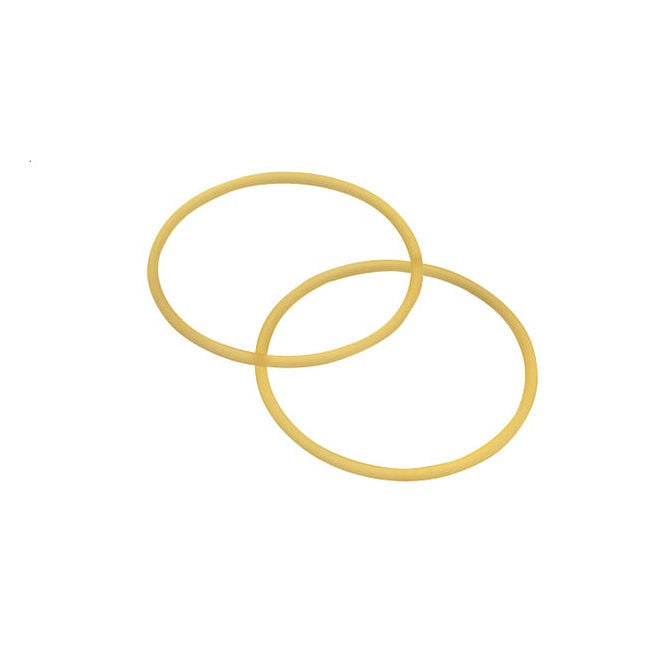

Round Seamless Urethane Belts. Seamless round belting. Yellow colour. Temperature range -31 to 70 Deg C (-25 to 158 Deg F).

  • These belts are molded from polyurethane without any joins.
  • They can be used as belts on u-groove pulleys or bearings, or as seals for applications requiring urethane.
  • Working Load is 8 Percent of Tensile Strength
  • Use with grooved idler pulleys with diameters at least 8 times the belt width.

Product Data

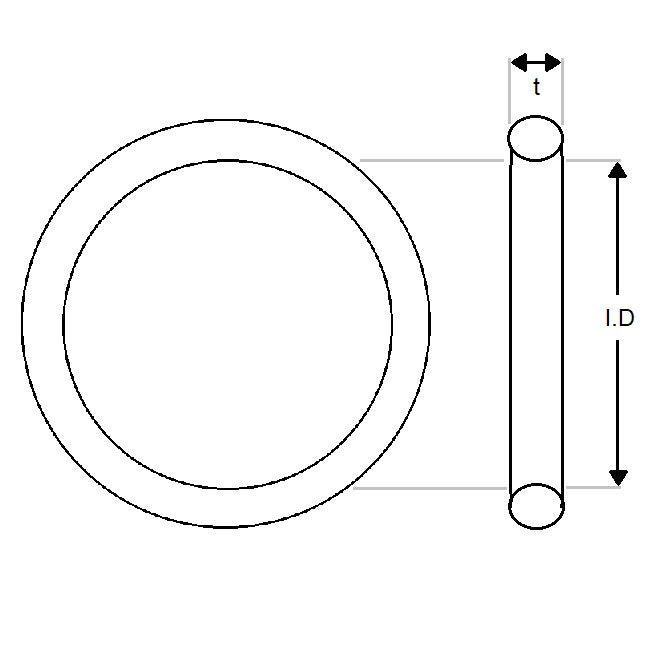

  • Cross Section : 5.0 mm
    (Equiv. 0.197 in.)
  • Pitch Circ. 440 mm
    (Equiv. 17.323 in.)
  • Min. Pulley Diameter 40.0 mm
    (Equiv. 1.575 in.)
  • Colour Yellow
  • Working Load 8.2 N
  • Material Polyurethane
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi MBN5-440
    • MBN5440
