MBN4-290 - Datasheet
MBA
Category Information

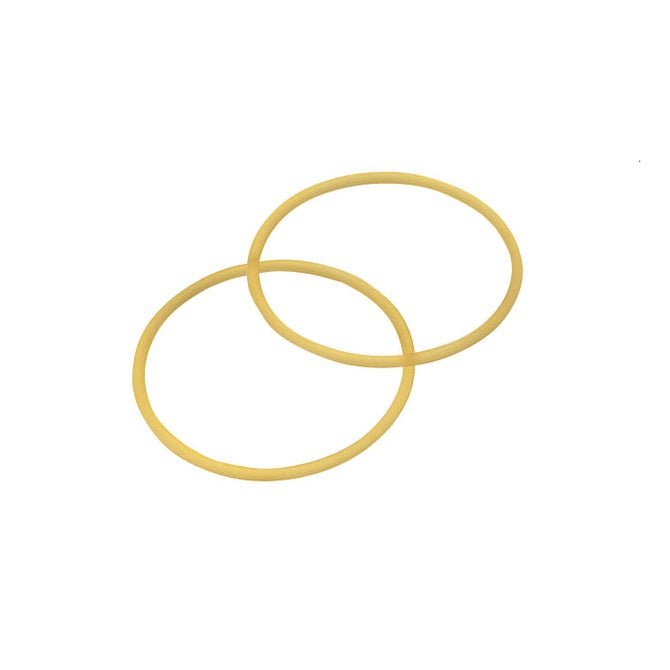

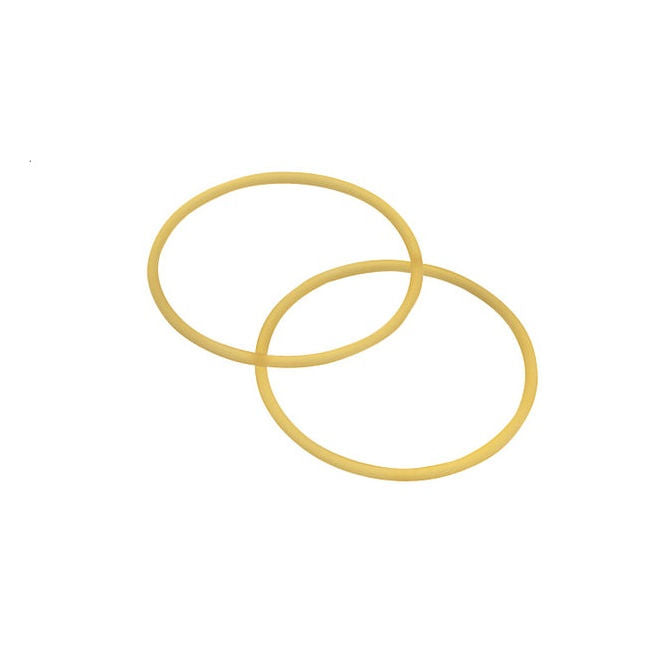

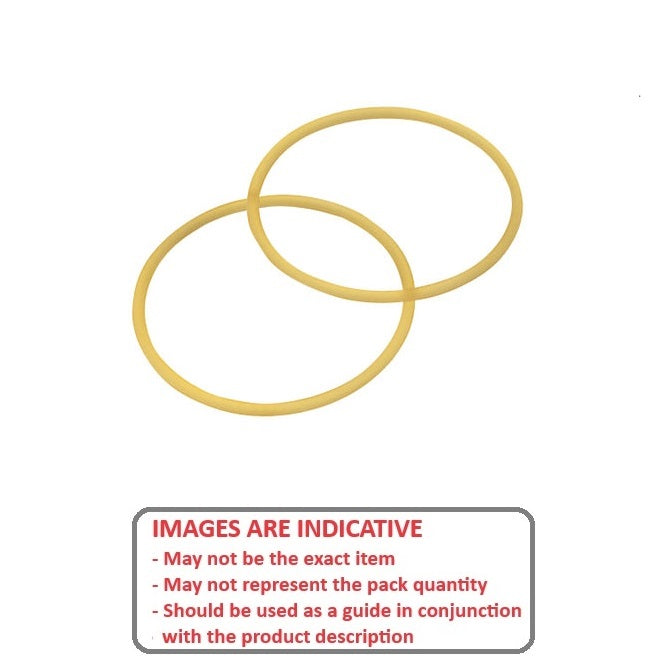

Belts - Round Seamless UrethaneRound Seamless Urethane Belts. Seamless round belting. Yellow colour. Temperature range -31 to 70 Deg C (-25 to 158 Deg F).
- These belts are molded from polyurethane without any joins.
- They can be used as belts on u-groove pulleys or bearings, or as seals for applications requiring urethane.
- Working Load is 8 Percent of Tensile Strength
- Use with grooved idler pulleys with diameters at least 8 times the belt width.
Product Data

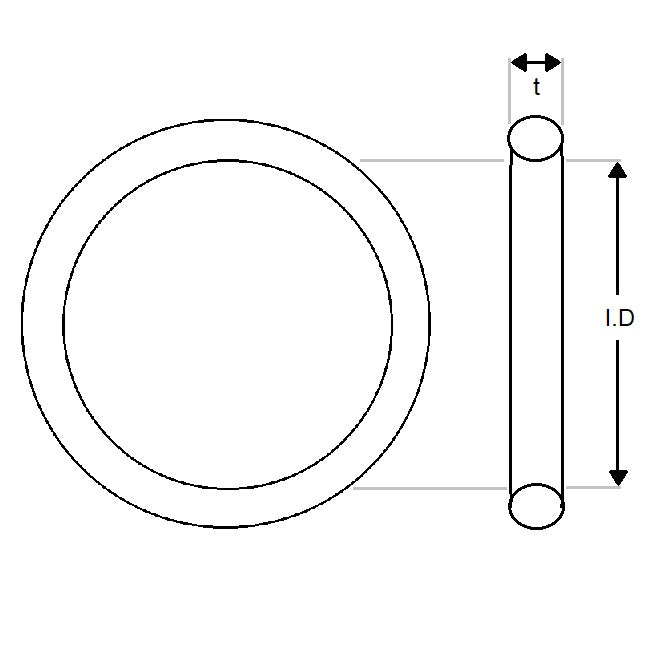

- Cross Section
:
4.0
mm
(Equiv. 0.157 in.) - Pitch Circ.
290
mm
(Equiv. 11.417 in.) - Min. Pulley Diameter
30.0
mm
(Equiv. 1.181 in.) - Colour Yellow
- Working Load 5.29 N
- Material Polyurethane
Product Compliance and Data
Additional Resources
Cross References
- Misumi MBN4-290
- MBN4290
