Miniature Bearings Australia

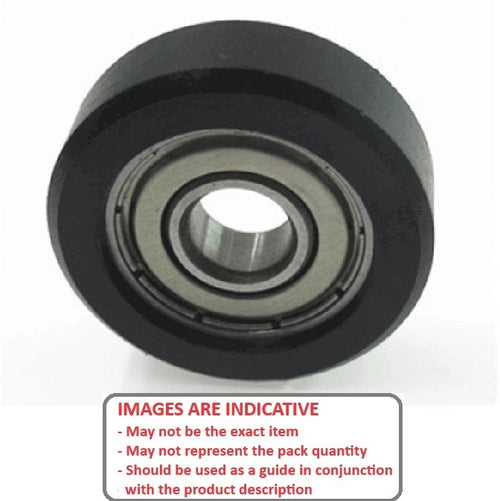

PR-0381-127-ZZ-UR-60 - Datasheet
MBA
Category Information
Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

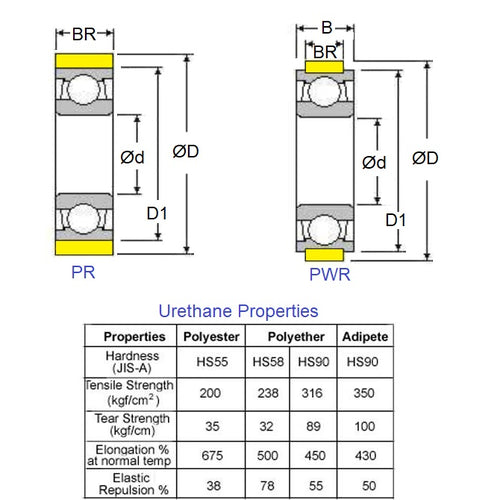

- OD (D)
:
38.100
mm
+/- 0.1
(Equiv. 1.5 in.) - ID (d)
12.700
mm
(Equiv. 0.5 in.) - Width (B)
7.137
mm
(Equiv. 0.281 in.) - Roller Width (BR) 7.137 mm
- Bearing Outside Diameter (D1) 22.225 mm
- Roller Material 60 Duro Urethane - Natural
- Closures ZZ
- Bearing Type Pressure Roller
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- A7Z8-URBB15050
- A7Z8URBB15050
