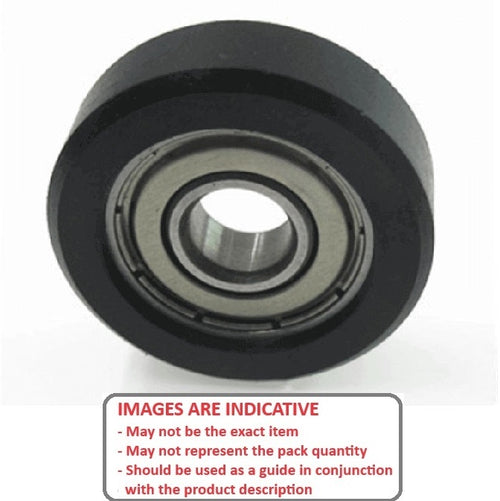

PR-0160-060-ZZ-UR-60 - Datasheet
ENQUIRE
Category Information
Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

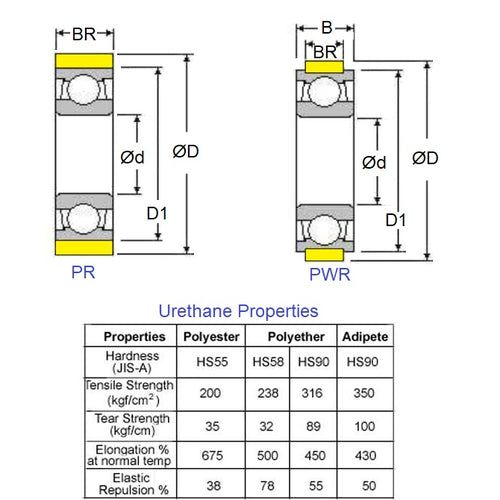

- OD (D)
:
16.000
mm
+/- 0.1
(Equiv. 0.63 in.) - ID (d) 6.000 mm
- Width (B) 5.000 mm
- Roller Width (BR) 5.000 mm
- Bearing Outside Diameter (D1) 13.000 mm
- Roller Material 60 Duro Urethane - Natural
- Closures ZZ
- Bearing Type Pressure Roller
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- A7Z8MURBB1606
