Miniature Bearings Australia
PR-0159-064-ZZ-UR-60 - Datasheet
MBA
Category Information

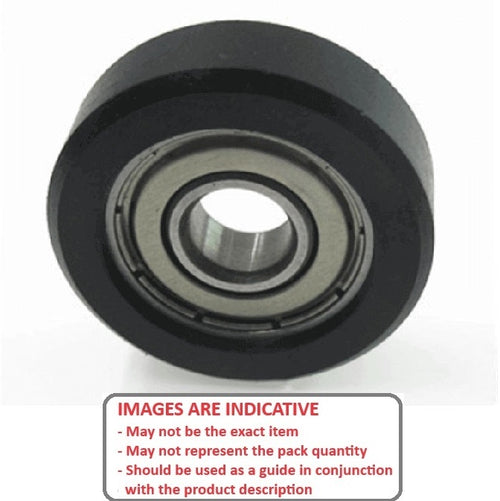

Rollers - Pressure Roller with Bearing - Urethane ODUrethane OD Pressure Roller with Bearing Rollers. Bearings with Urethane Tyre on OD for applications requiring frictional movement.
- For applications including paper and card dispensing and rolling (eg ATM Machines).
Product Data

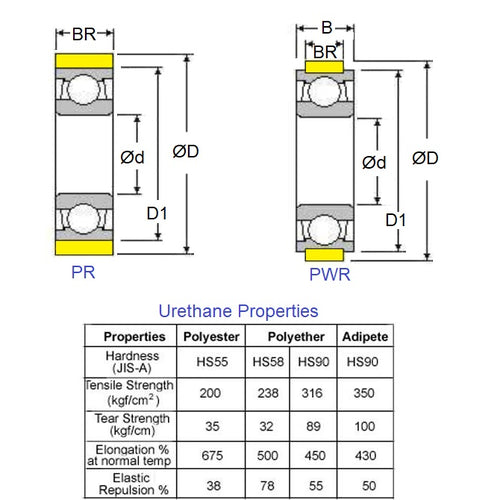

- OD (D)
:
15.875
mm
+/- 0.1
(Equiv. 0.625 in.) - ID (d)
6.350
mm
(Equiv. 0.25 in.) - Width (B)
4.762
mm
(Equiv. 0.187 in.) - Roller Width (BR) 4.762 mm
- Bearing Outside Diameter (D1) 12.700 mm
- Roller Material 60 Duro Urethane - Natural
- Closures ZZ
- Bearing Type Pressure Roller
- Material Stainless Steel AISI 440C
Product Compliance and Data
Additional Resources
Cross References
- A7Z8URBB06225
- A7Z8-URBB06225
