SWR144-D106W-ZS-KC - Datasheet

MBA

Category Information

Bearings - Dental Applications

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

  • Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
  • The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
  • Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
  • Please contact us for a dental application list.

Product Data

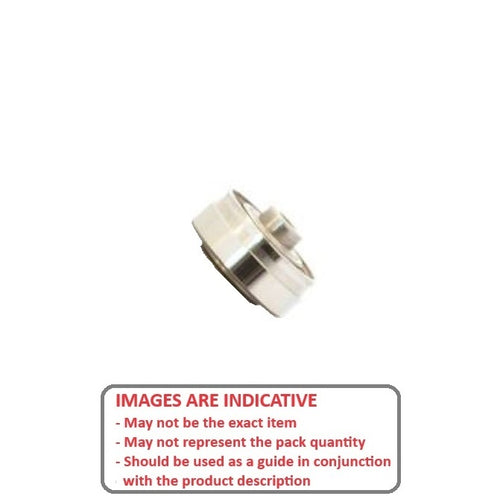

Open, stainless steel bearing, with extended inner ring and stepped OD, and phenolic cage, for dental applications

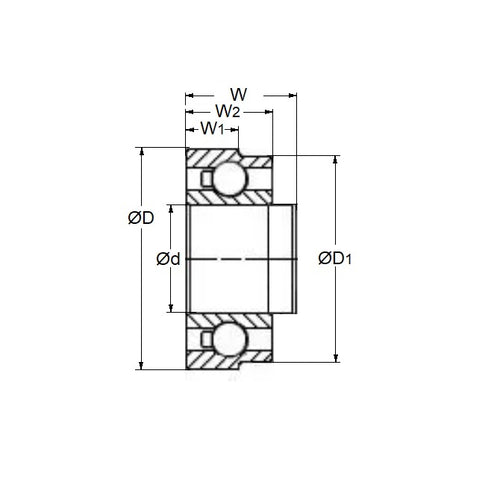

  • ID (d) : 3.175 mm -0.00 / +0.10
    (Equiv. 0.125 in.)
  • O.D. (D) 6.350 / 5.979 mm -0.10 / +0.00
    (Equiv. 0.25 in.)
  • Width (B) 2.381/2.778 mm -0.12 / +0.00
    (Equiv. 0.094 in.)
  • Additional Information Phenolic Cage
Country of Origin: CZ
