SR2-5A-D17-ZS-TO - Datasheet
MBA
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

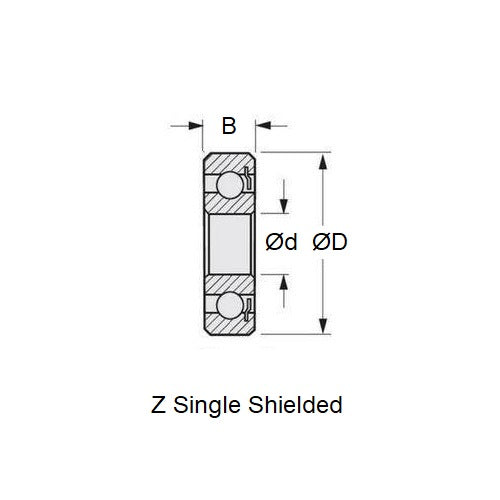

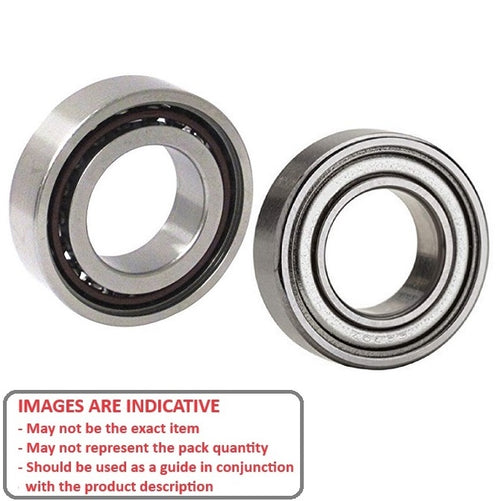

Single shielded Abec 7 precision special dental bearing with high speed Torlon retainer
- ID (d) : 3.175 mm
- O.D. (D) 7.938 mm
- Width (B) 3.572 mm
- Additional Information Stainless Steel, Torlon Cage
- Lubrication Type Oil
- Lubrication Name Undisclosed
- Basic Part R2-5A
- Limiting Speed 130650
- Cage Type Torlon
- Static Load Rating KGf 18
- Dynamic Load Rating KGf 57
- Radii 0.10 mm
- Inner Shoulder (UI) 4.35mm
- Outer Shoulder (UO) 7.10 mm
- Number of Balls 6
- Clearance Special
- Precision Grade Abec 7
- Closure Type ZS
- Max Temperature 140 Deg. C
