SR144A-D27-CSN-ZS-KC - Datasheet

MBA

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
Please contact us for a dental application list.

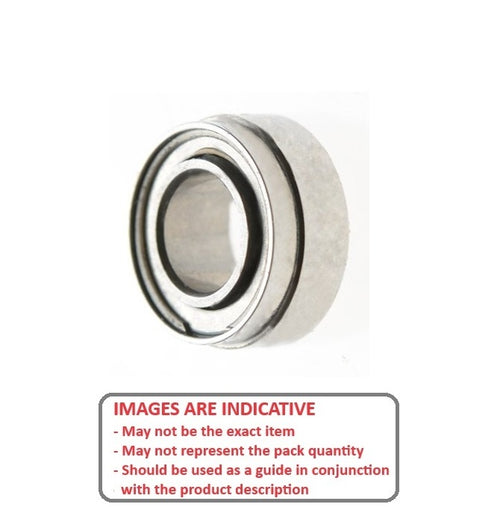

Precision ceramic-hybrid dental handpiece bearing with high speed phenolic retainer

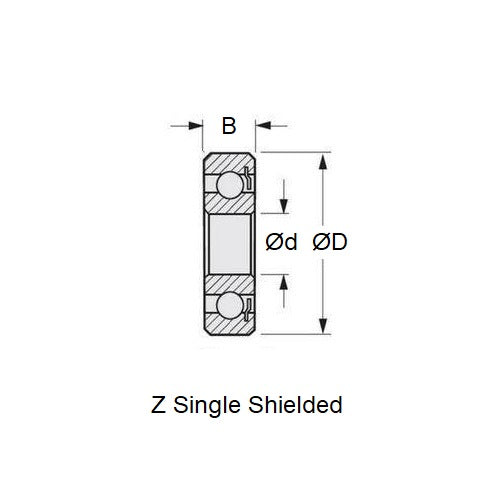

ID (d) : 3.175 mm _{+ 0.000 / - 0.004}
(Equiv. 0.125 in.)
O.D. (D) 6.350 mm _{+ 0.000 / - 0.005}
(Equiv. 0.25 in.)
Width (B) 2.779 mm _{+ 0.000 / - 0.040}
(Equiv. 0.109 in.)
Precision Grade Abec 7 - Optimyn Dental Bearing
Closure Type ZS
Bearing Type Radial
Lubricant Oil - Special
Material Stainless Steel AISI 440C - High Speed Phenolic Cage - Ceramic Balls - Dental Special

Country of Origin: CZ
