SFR144A-D27-CSN-ZSO-KC - Datasheet
MBA
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

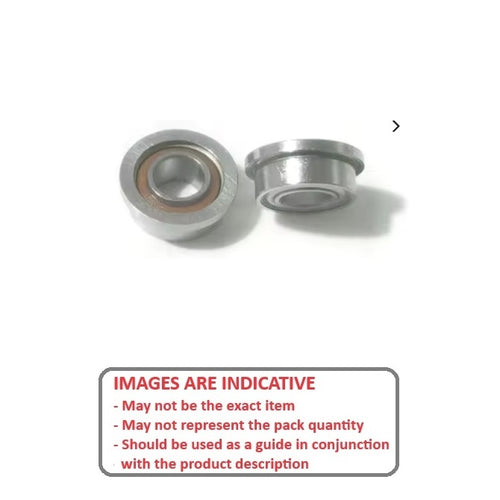

Precision dental handpiece bearing ceramic-hybrid and phenolic retainer

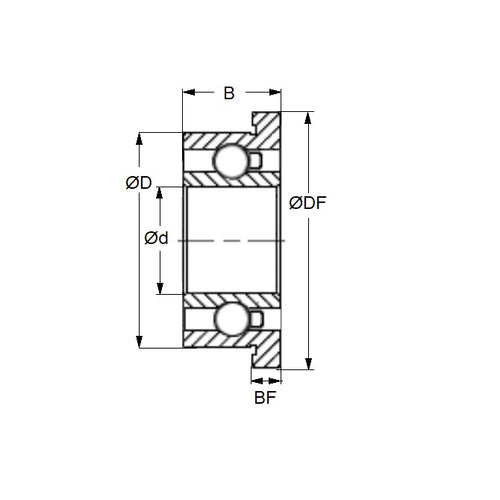

- ID (d) : 3.175 mm
- O.D. (D) 6.350 mm
- Width (B) 2.778 mm
- Flange Diameter (DF) 7.518 mm
- Additional Information Ceramic Hybrid, Phenolic Cage
- Lubrication Type Oil
- Lubrication Name Undisclosed
- Basic Part FR144A
- Limiting Speed 156000
- Cage Type Phenolic Linen Base
- Static Load Rating KGf 10
- Dynamic Load Rating KGf 29
- Radii 0.10 mm
- Inner Shoulder (UI) 3.92mm
- Outer Shoulder (UO) 5.75 mm
- Number of Balls 7
- Clearance Special
- Precision Grade Abec 7
- Closure Type ZSO
- Max Temperature 140 Deg. C
