SWR144B-CSN-ZE-MC3-GR7-TO - Datasheet

MBA

Category Information

Bearings - Dental Applications

Dental Applications Bearings. This listing shows the basic features of various bearings for dental applications.

  • Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
  • The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
  • Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
  • Please contact us for a dental application list.

Product Data

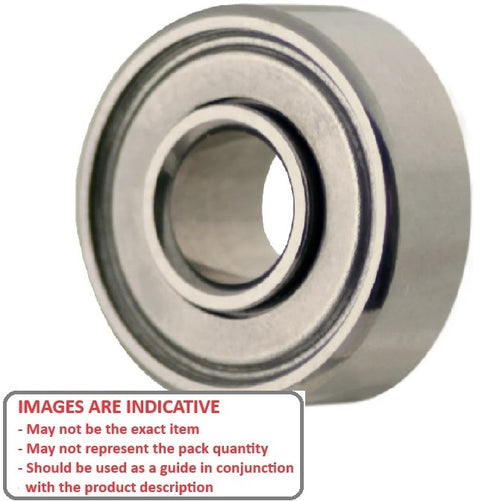

Double shielded Abec 7 precision ceramic-hybrid bearing with high speed Torlon retainer

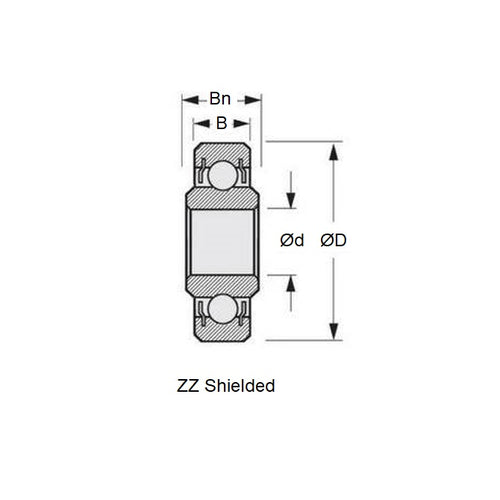

  • ID (d) : 3.175 mm
  • O.D. (D) 6.350 mm
  • Width (B) 2.350 mm
  • Inner Ring Width (Bn) 2.450 mm
  • Additional Information Ceramic Hybrid, Torlon Cage
Country of Origin: DE

Product Compliance and Data

Additional Resources

Applications & Uses

  • Dental Handpiece Parts
  • Sirona® - 001 - Bearing for Rotor Cartridge
  • Sirona® - T1 Boost Serial No. Over 602 001 - Bearing for Rotor Cartridge
  • Sirona® - T1 Control Serial Number Over 602 001 - Bearing for Rotor Cartridge
  • Sirona® - T2 Boost Serial No. Over 602 001 - Bearing for Rotor Cartridge
  • Sirona® - T2 Control Serial No. Over 602 001 - Bearing for Rotor Cartridge

Cross References

  • SWR144BCSNZEMC3GR7TO
  • SWR144BCSNZZSMC3GR7TO
