SR144-D106-CSN-ZS-TO - Datasheet
MBA
Category Information
Bearings - Dental ApplicationsDental Applications Bearings. This listing shows the basic features of various bearings for dental applications.
- Bearings used in high-speed and low-speed dental handpieces play a crucial role in the performance and reliability of these dental tools.
- The purpose of bearings in dental handpieces varies depending on the speed requirements and operational characteristics of the handpiece.
- Key features of dental equipment bearings are high precision allowing for high speed rotaion, low friction and quiet operation. An expanded range may be available on special order. Please enquire.
- Please contact us for a dental application list.
Product Data

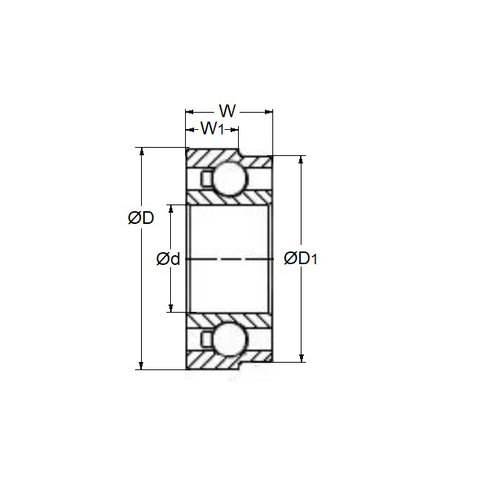

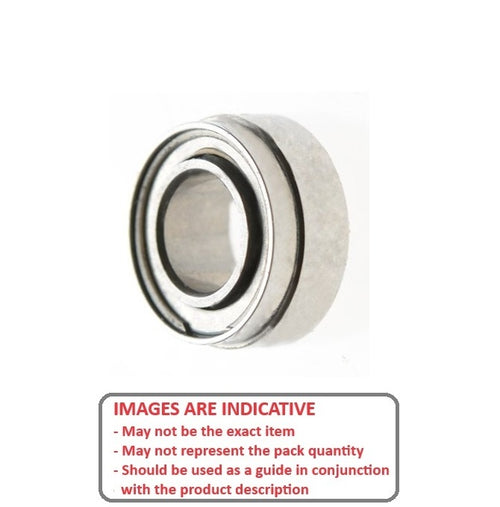

Single shielded, stepped OD, high precision stainless steel bearing with ceramic balls and Torlon retainer
- ID (d)
:
3.175
mm
-0.00 / +0.10
(Equiv. 0.125 in.) - O.D. (D)
6.350
mm
-0.10 / +0.00
(Equiv. 0.25 in.) - Width (B)
2.381
mm
-0.12 / +0.00
(Equiv. 0.094 in.) - Additional Information Ceramic Hybrid, Torlon Cage
Product Compliance and Data
Additional Resources
- Catalogue: Ceramic Bearings Catalogue
- Catalogue: Plastic Bearings Catalogue
- Catalogue: Standard Bearings Catalogue
- General: Bearing Cleanliness
- General: Bearing Clearances
- General: Bearing Flanges & Snap Rings
- General: Bearing Retainers (Cages)
- General: General Loads Information
- General: Lubrication
- General: Prefix & Suffix Guide
- General: Static vs Dynamic Loads
- Materials: 316 Stainless
- Materials: CASSTOP Anti-Corrosion Bearing Material
- Materials: Ceramic vs Ceramic Hybrid
- Materials: Ceramic Bearings in Vibratory Applications
- Materials: Ceramic Hybrid Bearings in Vibratory Applications
- Materials: General Bearing Materials
- Materials: Magnetism & Bearings
- Precision: 316 Stainless & Plastic Bearing Tolerances
- Precision: ABEC Basic Information
- Precision: Precision Bearing Tolerances
- Problem Solving: Bearing Failure
- Problem Solving: Fatigue (L10 Life)
- Problem Solving: Noise
Applications & Uses
- Dental Handpiece Parts
- B.A. International® - Ultima® 650L - Bearing for Cap End
- Borden® - Silencer - Replacement Bearing
- Dabi Atlante® - L350 - Replacement Bearing
- Dabi Atlante® - MS350 - Replacement Bearing
- KaVo® - 628 - 629 FG - Replacement Bearing
- KaVo® - 628 BellaTorque - Replacement Bearing
- KaVo® - Magno 634 - Replacement Bearing
- KaVo® - Miscellaneous Refer OEM Part Number - Bearing for Rotor Cartridge
- Siemens® - 4000 MS-ML - Replacement Bearing
- Siemens® - 4000 S-SL Push Button - Replacement Bearing
- Siemens® - T1 Mini TMC3LK - Replacement Bearing
- Siemens® - TM1 - Replacement Bearing
Cross References
- BKU20128CTO
