Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

BLB-04445-02540-W3 - Datasheet

Iglidur

Category Information

Balls - Bored - Plastic

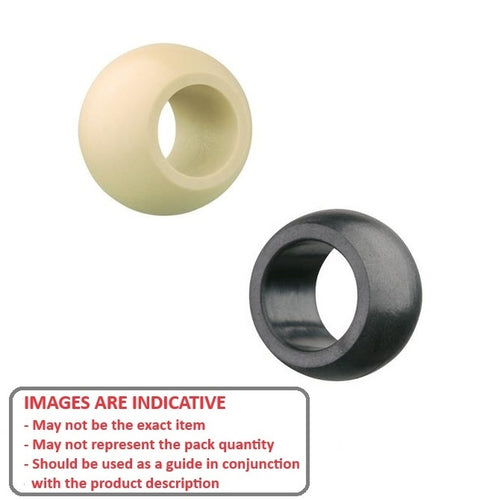

Plastic Bored Balls. Similr to the style used in plastic rod ends.

  • These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
  • Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
  • Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
  • High wear resistance at medium temperatures. Low moisture absorption.
  • Suitable for rotating, oscillating and linear movement. Lightweight.

Product Data

  • Diameter (D) : 44.45 mm
    (Equiv. 1.75 in.)
  • Inside Diameter (d1) 25.400 mm +0.040 / +0.124
    (Equiv. 1 in.)
  • Width (B) 34.93 mm
    (Equiv. 1.375 in.)
  • Shoulder Diameter (dn) 32.23 mm
  • Chamfer 0.3X30 mm
  • Material Plastic
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • Igus WKI-16
  • WKI16
