Miniature Bearings Australia
BLB-02525-01400-W3 - Datasheet
Iglidur
Category Information

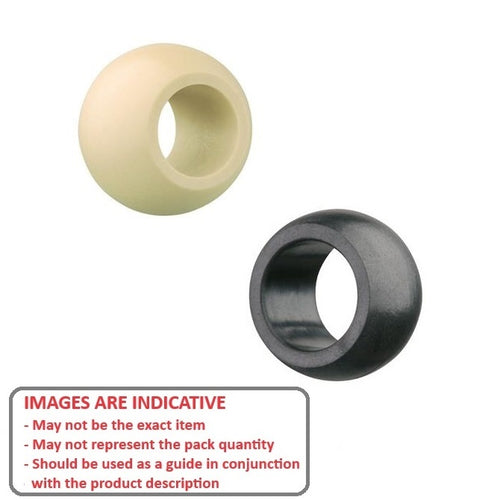

Balls - Bored - PlasticPlastic Bored Balls. Similr to the style used in plastic rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
- High wear resistance at medium temperatures. Low moisture absorption.
- Suitable for rotating, oscillating and linear movement. Lightweight.
Product Data
- Diameter (D)
:
25.25
mm
(Equiv. 0.994 in.) - Inside Diameter (d1)
14.000
mm
+0.032 / +0.102
(Equiv. 0.551 in.) - Width (B)
19.00
mm
(Equiv. 0.748 in.) - Shoulder Diameter (dn) 16.80 mm
- Chamfer 0.3X30 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus WKM-14-19
- WKM1419
