BLB-02383-01270-W3 - Datasheet
Iglidur
Category Information

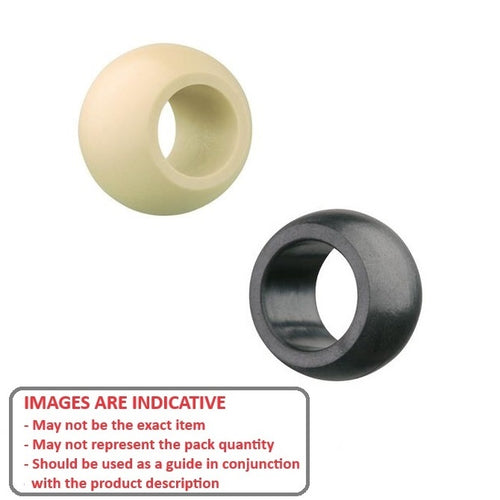

Balls - Bored - PlasticPlastic Bored Balls. Similr to the style used in plastic rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
- High wear resistance at medium temperatures. Low moisture absorption.
- Suitable for rotating, oscillating and linear movement. Lightweight.
Product Data
- Diameter (D)
:
23.83
mm
(Equiv. 0.938 in.) - Inside Diameter (d1)
12.700
mm
+0.032 / +0.102
(Equiv. 0.5 in.) - Width (B)
15.88
mm
(Equiv. 0.625 in.) - Shoulder Diameter (dn) 17.78 mm
- Chamfer 0.3X30 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus WKI-08
- WKI08
