Miniature Bearings Australia
BLB-01270-00600-W3 - Datasheet
Iglidur
Category Information

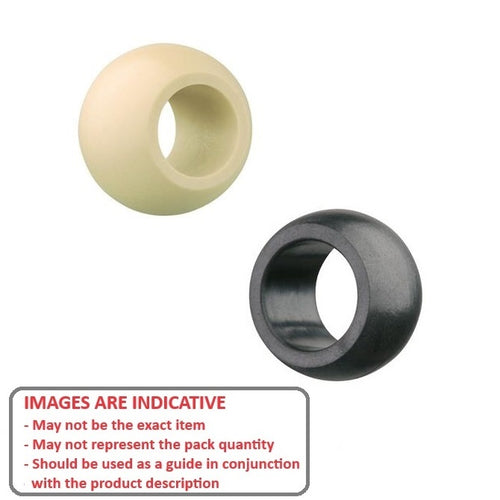

Balls - Bored - PlasticPlastic Bored Balls. Similr to the style used in plastic rod ends.
- These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
- Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
- Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
- High wear resistance at medium temperatures. Low moisture absorption.
- Suitable for rotating, oscillating and linear movement. Lightweight.
Product Data
- Diameter (D)
:
12.70
mm
(Equiv. 0.5 in.) - Inside Diameter (d1)
6.000
mm
+0.025 / +0.083
(Equiv. 0.236 in.) - Width (B)
9.00
mm
(Equiv. 0.354 in.) - Shoulder Diameter (dn) 8.90 mm
- Chamfer 0.3X30 mm
- Material Plastic
Product Compliance and Data
Additional Resources
Cross References
- Igus WKM-06-09
- WKM0609
