BLB-01311-00635-W3 - Datasheet

Iglidur

Category Information

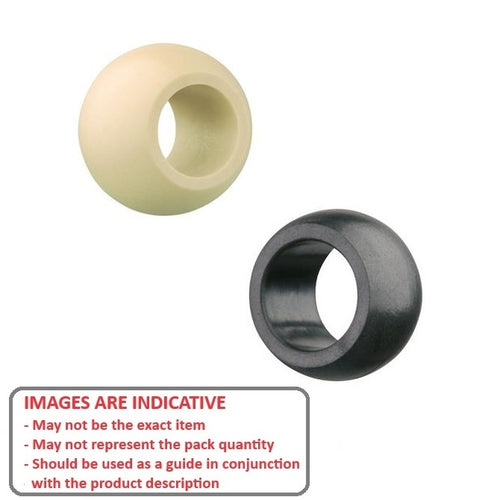

Balls - Bored - Plastic

Plastic Bored Balls. Similr to the style used in plastic rod ends.

  • These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
  • Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
  • Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
  • High wear resistance at medium temperatures. Low moisture absorption.
  • Suitable for rotating, oscillating and linear movement. Lightweight.

Product Data

  • Diameter (D) : 13.11 mm
    (Equiv. 0.516 in.)
  • Inside Diameter (d1) 6.350 mm +0.025 / +0.083
    (Equiv. 0.25 in.)
  • Width (B) 9.53 mm
    (Equiv. 0.375 in.)
  • Shoulder Diameter (dn) 8.99 mm
  • Chamfer 0.3X30 mm
  • Material Plastic
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • Igus WKI-04
  • WKI04
