BLB-01128-00483-W3 - Datasheet

Iglidur

Category Information

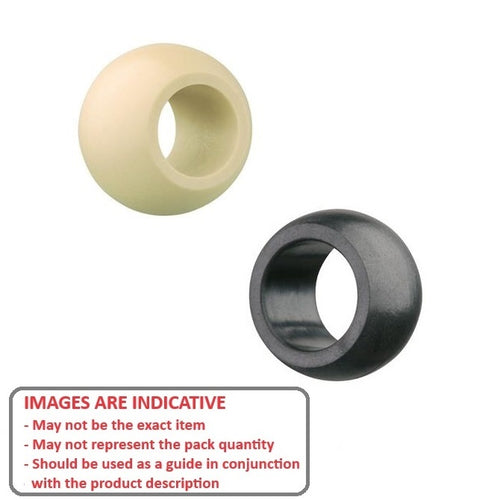

Balls - Bored - Plastic

Plastic Bored Balls. Similr to the style used in plastic rod ends.

  • These bored balls are similar to the style of ball often found in a rod end or a spherical plain bearing.
  • Used in machinery for applications such as pivots, in industries that include food processing, medical supplies, and general parts production.
  • Igildur W300. Corrosion Resistant. Maintenance Free - Self Lubricating.
  • High wear resistance at medium temperatures. Low moisture absorption.
  • Suitable for rotating, oscillating and linear movement. Lightweight.

Product Data

  • Diameter (D) : 11.28 mm
    (Equiv. 0.444 in.)
  • Inside Diameter (d1) 4.830 mm +0.020 / +0.068
    (Equiv. 0.19 in.)
  • Width (B) 7.92 mm
    (Equiv. 0.312 in.)
  • Shoulder Diameter (dn) 7.62 mm
  • Chamfer 0.3X30 mm
  • Material Plastic
Country of Origin: DE

Product Compliance and Data

Additional Resources

Cross References

  • Igus WKI-03
  • WKI03
