Miniature Bearings Australia

BL-00953-BR-G500 - Datasheet

MBA

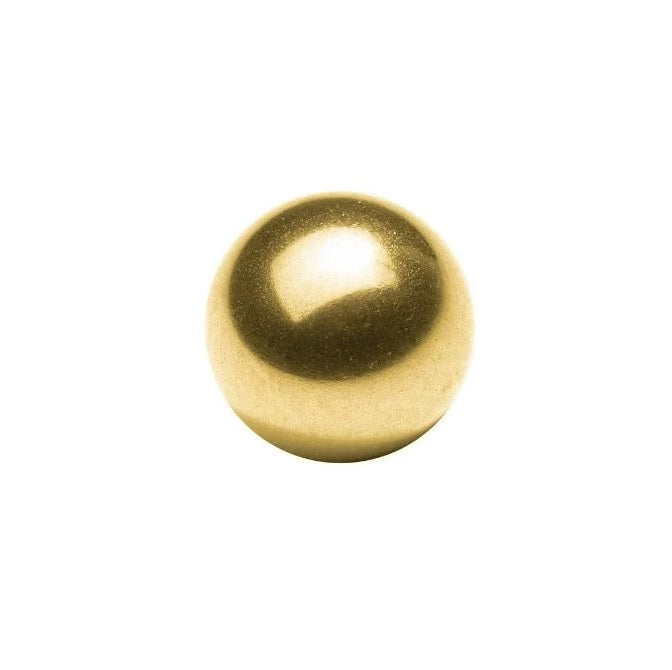

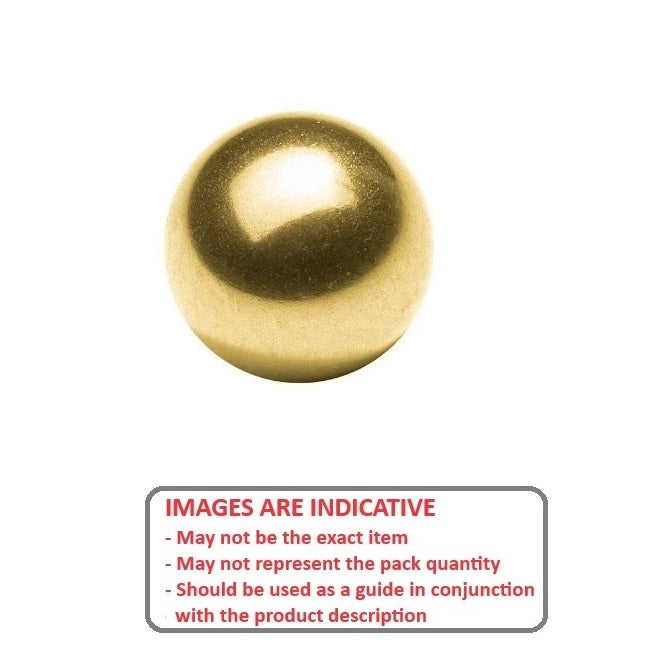

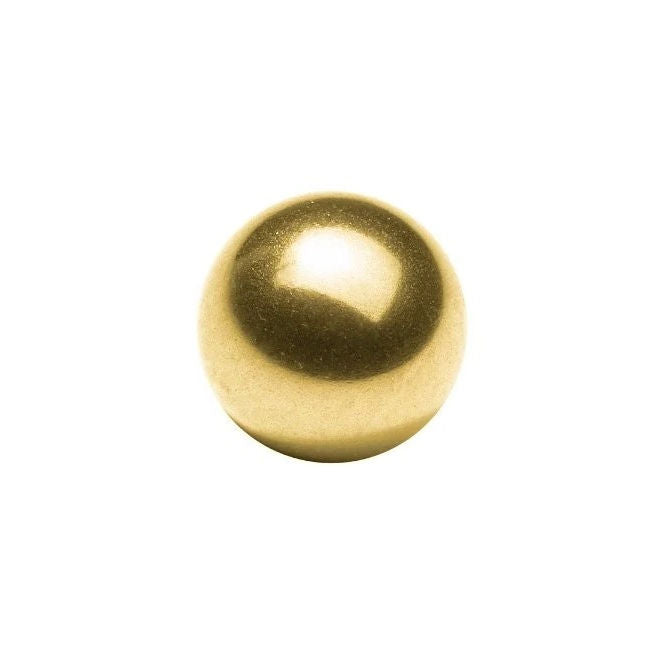

Brass Metallic Balls. Specific Gravity 8.4 to 8.7

Grades shown are AFBMA and ISO3290-1 which relates primarily to the ovality of the ball rather than the diametrical tolerance
General balls offered for sale may be from different ball lots, so the diametrical tolerance shown, indicates a variance that might be encountered if balls of different gauges are mixed, unless a ball gauge is specified for the part.
For diametrically critical applications, a special quote can be obtained for balls of a specified ball gauge.

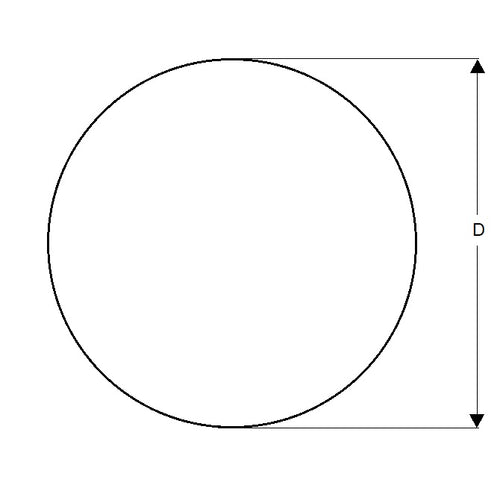

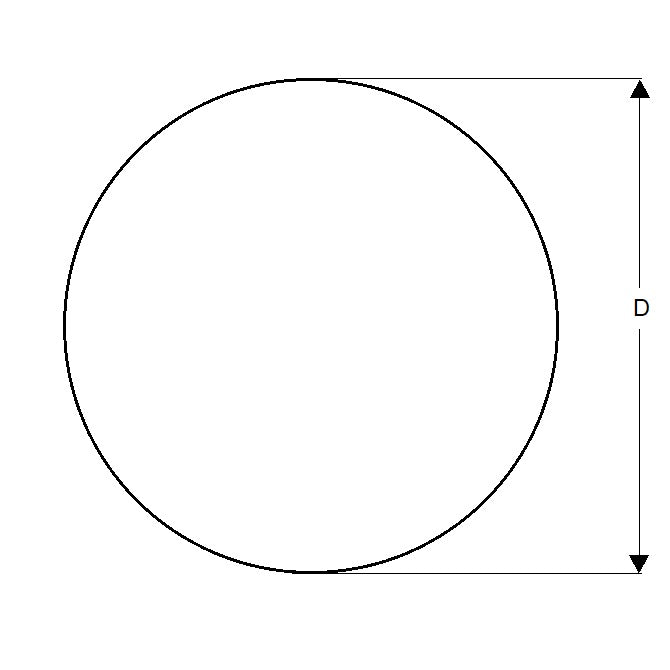

Diameter (D) : 9.525 mm _{+/- 0.1270}
(Equiv. 0.375 in.)
Material Brass
Precision AFBMA Grade 500
Hardness 60-70 Rockwell B
Properties Good corrosion resistance, widely used as an electrical conductor
Colour Brass
Specific Gravity 8.40
Ovality +/-0.01270
Material Brass

Country of Origin: TW
