Miniature Bearings Australia
AST-CIR-M-EX-0150 - Datasheet
MBA
Category Information
Assortment Kits - Small PartsSmall Parts Assortment Kits. This is the main category in this series
- Small parts assortment kits include selections of circlips, e-clips, various types of fastening pins, grease nipples, grommets, threaded inserts, r-clips, o-rings, screws, shim, springs, taps, washers, and nuts.
- These parts are selections from our standard ranges of small parts, and the sizes in the kits can usually be replaced with selections available from the web store.
- An expanded range may be available on special order. Please enquire.
Product Data

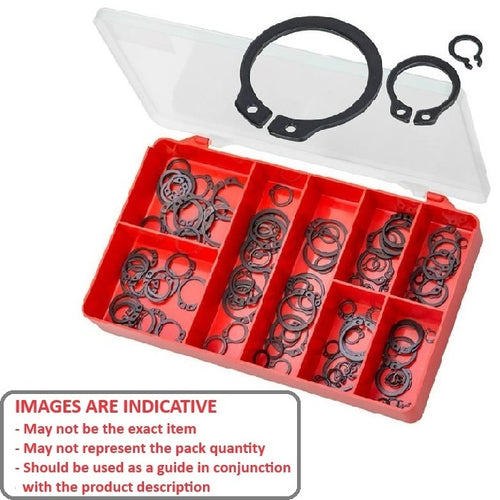

- Selection : Circlips - External
- Quantity Per Kit 150
- Description Metric External Circlips - 8mm to 45mm Range
- Contents 8mm, 10mm, 12mm, 14mm (15 each)
- Also includes 15mm, 16mm, 17mm, 18mm (10 each)
- Also includes 20mm, 22mm, 24mm (8 each)
- Also includes 25mm, 28mm (5 each)
- Also includes 30mm, 32mm, 35mm (4 each)
- Also includes 40mm, 45mm (2 each)
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DISP-DSH150
- DISPDSH150
