ECL-0080-0090-CZ - Datasheet
MBA
Category Information

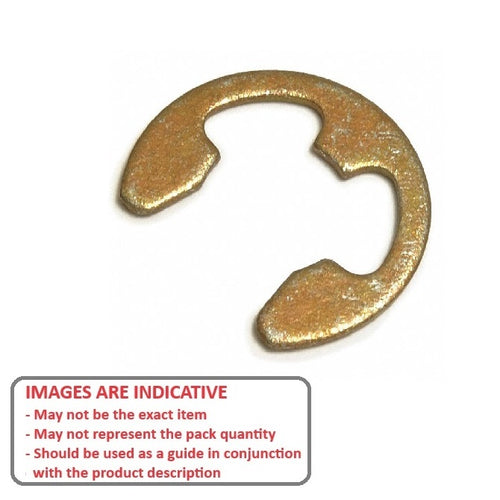

Retaining Rings - E-Clips - Basic - Carbon SteelCarbon Steel Basic E-Clips Retaining Rings. Basic imperial and metric e-clips DIN6799 and N1500. Carbon spring steel including zinc plated and plain.
- An expanded range may be available on special order. Please enquire.
- Not all e-clips are exactly the same style, however all follow the basic principal of a push on clip.
- Includes plain and zinc plated.
Product Data
- Minimum Rec. Shaft Dia (S)
:
9.00
mm
+ 3.00 / - 0.00
(Equiv. 0.354 in.) - Groove Dia. (Dg)
8.00
mm
+ 0.00 / - 0.09
(Equiv. 0.315 in.) - Clip Thickness (T)
1.00
mm
+/ - 0.03
(Equiv. 0.039 in.) - Clip OD Loose (D1) 15.75 mm
- Groove Width (W) 1.05 mm
- Maximum Rec. Shaft Dia (S) 12.00
- Clip OD in groove (C1) 16.30 mm
- Loose Clip ID (A) 6.52 mm
- Min. Extension (n) 1.80
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 90768A108
- 15000080AZG
- 1500-0080AZG
- D1500-0080AZG
- D15000080AZG
