P-609-AGL - Datasheet

KMS

Category Information

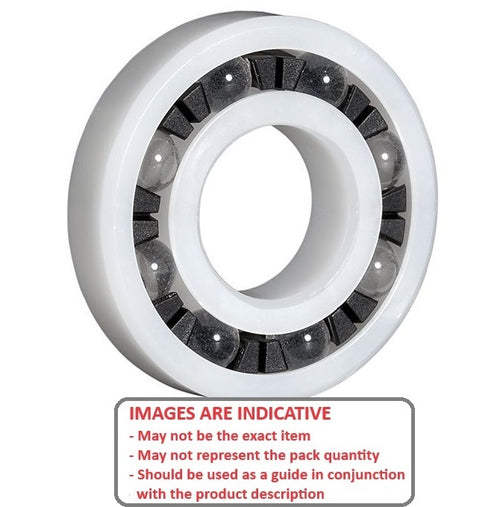

Bearings - Plastic - Acetal - Single Row - Glass Balls

Glass Balls Single Row Acetal Plastic Bearings. Bearings for Extreme Corrosion Resistance - Low Speed - Low Load.

  • Plastic bearings, also known as polymer bearings, are bearings made from various types of plastics or polymer materials. Used in a wide range of applications across different industries where traditional metal bearings may not be suitable.
  • These bearings offer unique advantages such as corrosion resistance, low friction, lightweight construction, and non-magnetic properties. Uses include Food and Beverage Industry, Medical and Laboratory Equipment, Chemical Industry,HVAC Systems.
  • Plastic ball bearings do not use the same precision standards as those for precision ball bearings. An expanded range may be available on special order. Please enquire.
  • Races made from Acetal - Balls made from Ground Glass - Cages from Acetal or Nylon.
  • Lubrication - Water Lubrication or can be run dry - Must lubricate over 2500 RPM.
  • Temperature Range - Minus 30 oC to 100 oC Continuous.

Product Data

  • ID (d) : 9.000 mm + 0.076 / - 0.000
    (Equiv. 0.354 in.)
  • OD (D) 24.000 mm + 0.000 / - 0.076
    (Equiv. 0.945 in.)
  • Width (B) 7.000 mm + 0.127 / - 0.000
    (Equiv. 0.276 in.)
  • Max RPM in Air 1600
  • Notes Unlubricated
  • Type Radial
  • Dynamic Load Rating 19.1 Kg
  • Static Load Rating 15 Kg
  • Material Acetal with Glass Balls
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KMS A609-G
  • Small Parts BNMN-9
  • A7Z5M2409
  • AGL609
  • A609G
  • BNMN9
