Miniature Bearings Australia
609-MC3-AF12 - Datasheet
MBA
Category Information

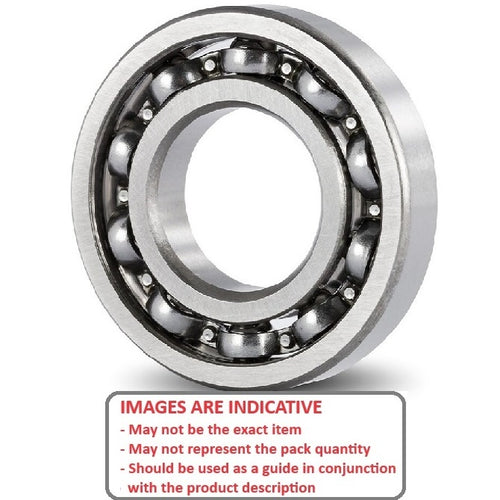

Bearings - Single Row Ball - Unflanged - Precision - Chrome SteelChrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

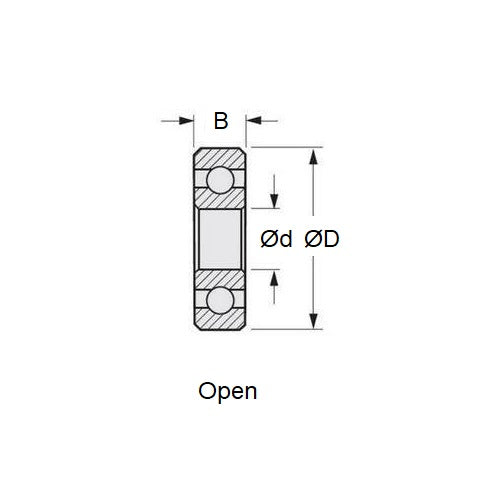

- ID (d)
:
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - OD (D)
24.000
mm
+ 0.000 / - 0.010
(Equiv. 0.945 in.) - Width (B)
7.000
mm
+ 0.000 / - 0.125
(Equiv. 0.276 in.) - Precision Grade Abec 1
- Closure Type Open
- Bearing Type Radial
- Material Chrome Steel SAE 52100
- Lubrication Type Oil
- Lubrication Name AF12 Aeroshell Fluid 12
- Basic Part 609
- Limiting Speed 38000
- Cage Type Ribbon
- Static Load Rating KGf 145
- Dynamic Load Rating KGf 340
- Radii 0.30 mm
- Inner Shoulder (UI) 13.85mm
- Outer Shoulder (UO) 19.46 mm
- Number of Balls 7
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type Open
- Max Temperature 120 Deg. C
