699-CSN-T9H-ECO - Datasheet

ECO

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Ceramic Hybrid

Ceramic Hybrid Precision Unflanged Single Row Ball Bearings. Steel Races with Si3N4 Ceramic Balls

  • Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
  • Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
  • They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
  • Bearings with steel races and ceramic balls.
  • For standard bearings, the balls are usually one of the first components to show wear.
  • Ceramic balls are harder than steel and do not wear as easily.
  • Items with high speed cages have the suffixes T9H, TNH, TW or KC

Product Data

High speed polyamide cage. Ceramic balls.

  • ID (d) : 9.000 mm
    (Equiv. 0.354 in.)
  • OD (D) 20.000 mm
    (Equiv. 0.787 in.)
  • Width (B) 6.000 mm
    (Equiv. 0.236 in.)
  • Precision Grade Economy
  • Closure Type Open
  • Bearing Type Radial
  • Material Chrome Steel SAE 52100 - High Speed Polyamide Cage - Ceramic Si3N4 Balls
  • Lubrication Type Grease
  • Lubrication Name Standard Unspecified
  • Basic Part 699
  • Limiting Speed 51680
  • Cage Type Polyamide
  • Static Load Rating KGf 83.6
  • Dynamic Load Rating KGf 191.5
  • Radii 0.30 mm
  • Inner Shoulder (UI) 11.60mm
  • Outer Shoulder (UO) 17.44 mm
  • Number of Balls 8
  • Clearance ECO (5 to 23)
  • Precision Grade ECO
  • Closure Type Open
  • Max Temperature 120 Deg. C
Country of Origin: TW

Product Compliance and Data

Additional Resources

Applications & Uses

  • RC Nitro Engine Parts
  • ASP - 36 All Models - Bearing 9-20-6mm
  • China Shanghai - CS - 46 - Bearing 9-20-6mm
  • Evolution - 36NT - 60 - Bearing 9-20-6mm
  • Magnum Power - XL - 15 - Bearing 9-20-6mm
  • Magnum Power - XL - 25 - Bearing 9-20-6mm
  • Magnum Power - XLS - 52 - Bearing 9-20-6mm
  • Magnum Power - XLS - 70 - Bearing 9-20-6mm
  • MVVS - 21 All Models - Bearing 9-20-6mm
  • MVVS - GFS/R-ABC-RC - 40 - Bearing 9-20-6mm
  • OS - EX-B - 12 - Bearing 9-20-6mm
  • OS - EX-M ABC RC - 65 - Bearing 9-20-6mm
  • OS - EX-R ABC RC - 21 - Bearing 9-20-6mm
  • OS - FX - 300 - Bearing 9-20-6mm
  • OS - RF-B - 61 - Bearing 9-20-6mm
  • OS - RF-B ABC RC - 21 - Bearing 9-20-6mm
  • OS - RF-HS - 61 - Bearing 9-20-6mm
  • OS - SE-B - 21 - Bearing 9-20-6mm
  • OS - SE-B ABC RC - 21 - Bearing 9-20-6mm
  • OS - SE-M - 21 - Bearing 9-20-6mm
  • OS - SE-M ABC RC - 21 - Bearing 9-20-6mm
  • OS - SE-R - 21 - Bearing 9-20-6mm
  • OS - SE-R ABC RC - 21 - Bearing 9-20-6mm
  • OS - SF-HS - 61 - Bearing 9-20-6mm
  • OS - SX - 61 - Bearing 9-20-6mm
  • OS - SX-H - 32 - Bearing 9-20-6mm
  • OS - SXH-R - 32 - Bearing 9-20-6mm
  • OS - SX-HX - 50 - Bearing 9-20-6mm
  • OS - SX-MX - 61 - Bearing 9-20-6mm
  • OS - SZ-H Ring Engine - 70 - Bearing 9-20-6mm
  • OS - VF ABC RC - 18 - Bearing 9-20-6mm
  • OS - VF-BR Buggy - 25 - Bearing 9-20-6mm
  • OS - VF-DF ABC RC - 46 - Bearing 9-20-6mm
  • OS - VF-HS With Cone - 61 - Bearing 9-20-6mm
  • OS - VF-R ABC RC - 25 - Bearing 9-20-6mm
  • OS - VR BR BUG - 48 - Bearing 9-20-6mm
  • PIP Marine - A45 - 28 - Bearing 9-20-6mm
  • Thunder Tiger - Pro H - 90 - Bearing 9-20-6mm

Cross References

  • BOCA MR699C-TH9-C3
  • MR699CTH9C3
  • 699 Basic Size Ref
View full details

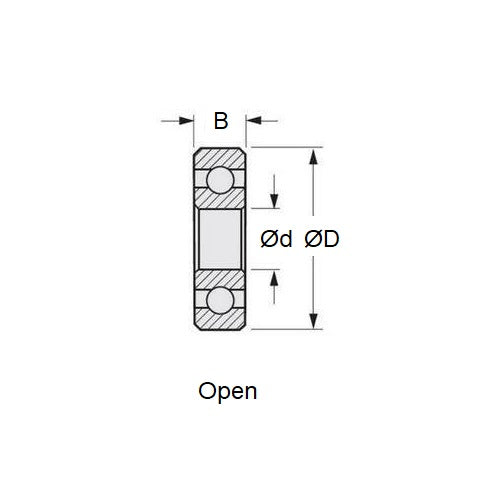

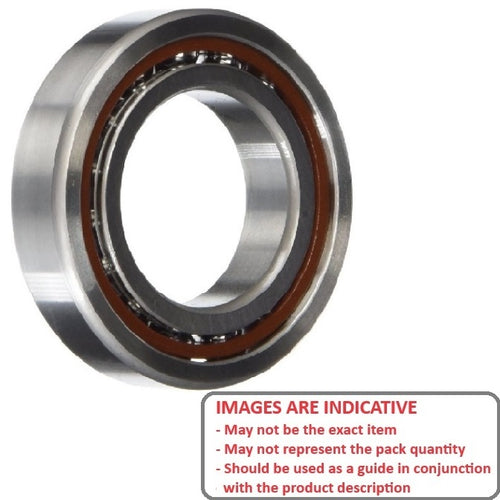

699-CSN-T9H-ECODiagram699-CSN-T9H-ECOImage
