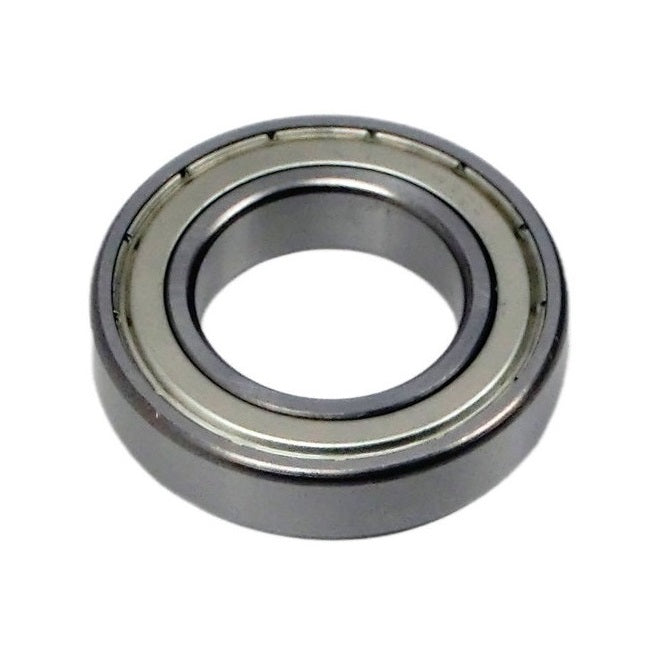

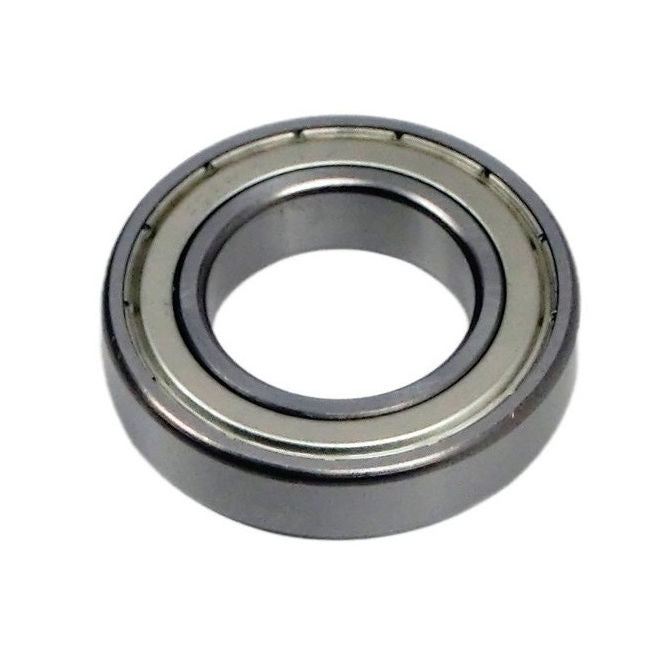

689A-ZZ-MC3 - Datasheet

MBA

Category Information

Bearings - Single Row Ball - Unflanged - Precision - Chrome Steel

Chrome Steel Precision Unflanged Single Row Ball Bearings. Chrome steel radial ball bearings.

Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
Standard single row radial ball bearings.

Product Data

ID (d) : 9.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.354 in.)
OD (D) 17.000 mm _{+ 0.000 / - 0.0075}
(Equiv. 0.669 in.)
Width (B) 5.000 mm _{+ 0.000 / - 0.125}
(Equiv. 0.197 in.)
Precision Grade Abec 1
Closure Type ZZ
Bearing Type Radial
Material Chrome Steel SAE 52100

Lubrication Type Grease
Lubrication Name Standard Unspecified
Basic Part 689A
Limiting Speed 36000
Cage Type Ribbon
Static Load Rating KGf 68
Dynamic Load Rating KGf 135
Radii 0.20 mm
Inner Shoulder (UI) 10.70mm
Outer Shoulder (UO) 15.20 mm
Number of Balls 11
Clearance MC3 (5 to 10)
Precision Grade Abec 1
Closure Type ZZ
Max Temperature 120 Deg. C

Country of Origin: JP

Product Compliance and Data

Additional Resources

Applications & Uses

RC Helicopter Parts
RC Nitro Engine Parts
Align - Trex 600 CF - Bearing 9-17-5mm
ASP - 32 - Front Bearing
Bluebird - 2C - 28 RR Engine - Bearing 9-17-5mm
Brat - 21 All Models - Bearing 9-17-5mm
K.B - 25 - Front Bearing 9-17-5mm
Magnum - 25 - 2 Stroke - Front Bearing 9-17-5mm
Magnum - 36 - 2 Stroke - Front Bearing 9-17-5mm
Magnum Power - Pro - 46 - Bearing 9-17-5mm
Norvel - 25 - 40 - Bearing 9-17-5mm
OS - 12 CZR - 2 Stroke - Front Bearing 9-17-5mm
OS - 12 CZZ - 2 Stroke - Front Bearing 9-17-5mm
OS - 15 CVA - 2 Stroke - Front Bearing 9-17-5mm
OS - 25 F ABC RC W-Muffler - Front Bearing 9-17-5mm
OS - 25 FR RC W-Muffler - Front Bearing 9-17-5mm
OS - 25 FX - 2 Stroke - Front Bearing 9-17-5mm
OS - 28 F RC W-Muffler - Front Bearing 9-17-5mm
OS - 28 F-H ABC RC - Front Bearing 9-17-5mm
OS - 28 F-H RC W-Muffler - Front Bearing 9-17-5mm
OS - 32 F ABC RC W-Muffler - Front Bearing 9-17-5mm
OS - 32 F-C RC - Front Bearing 9-17-5mm
OS - 32 F-HS RC W-Cone - Front Bearing 9-17-5mm
OS - 32 FX - 2 Stroke - Front Bearing 9-17-5mm
OS - F - 21 - Bearing 9-17-5mm
OS - F ABC RC W-Muffler - 21 - Bearing 9-17-5mm
OS - F RC W-Muffler - 25 - Bearing 9-17-5mm
OS - F320 4 Cylinder RC - 4 Stroke - Camshaft Bearing 9-17-5mm
OS - F4 4-C - 32 - Bearing 9-17-5mm
OS - F4 4CYL - 32 - Bearing 9-17-5mm
OS - F-F ABC RC - 28 - Bearing 9-17-5mm
OS - F-F RC - 32 - Bearing 9-17-5mm
OS - FF240 4 Cylinder RC - 4 Stroke - Camshaft Bearing 9-17-5mm
OS - F-H RC - 32 - Bearing 9-17-5mm
OS - F-H RC W-Muffler - 28 - Bearing 9-17-5mm
OS - FH With COIL - 320 - Bearing 9-17-5mm
OS - FH With Recoil - 240 - Bearing 9-17-5mm
OS - F-HS RC With Cone - 32 - Bearing 9-17-5mm
OS - F-HX - 28 - Bearing 9-17-5mm
OS - F-MX - 32 - Bearing 9-17-5mm
OS - FS 40S-C - 90 - Bearing 9-17-5mm
OS - FS M RC 4C Marine - 91 - Bearing 9-17-5mm
OS - FS40 - 4 Stroke - Front Bearing
OS - FS40-M - 4 Stroke - Front Bearing
OS - FSR - 52 - Bearing 9-17-5mm
OS - FT 12 Twin RC 4C - 40 - Bearing 9-17-5mm
OS - FT Twin RC 4C - 12 - Bearing 9-17-5mm
OS - FT Twin RC 4C - 120 - Bearing 9-17-5mm
OS - FT Twin RC 4C - 160 - Bearing 9-17-5mm
OS - FT Twin RC 4C - 45 - Bearing 9-17-5mm
OS - FT12011 Twin RC - 4 Stroke - Camshaft Bearing 9-17-5mm
OS - FT160 Twin RC - 4 Stroke - Camshaft Bearing 9-17-5mm
OS - FT240 -FT300 TW RC - 4 Stroke - Camshaft Bearing 9-17-5mm
OS - Maxx Old - 60 - Bearing 9-17-5mm
OS - Outboard PTO Marine - 40 - Cam Shaft
OS - SF - 21 - Bearing 9-17-5mm
OS - XM PTO Outboard - 61 - Cam Shaft
Royal - 21 All Models - Bearing 9-17-5mm
Royal - 25 -28 - Front Bearing 9-17-5mm
Royal - 60 All Models - Bearing 9-17-5mm
Super Tigre - GH - 90 - Bearing 9-17-5mm
Thunder Tiger - 25 Pro - 2 Stroke - Front Bearing 9-17-5mm
Thunder Tiger - 36 Pro - 2 Stroke - Front Bearing 9-17-5mm
Thunder Tiger - 36H - 2 Stroke - Front Bearing 9-17-5mm
Thunder Tiger - Pro - 15 - Bearing 9-17-5mm
Thunder Tiger - Pro - 21 - Bearing 9-17-5mm
Thunder Tiger - Pro H - 61 - Bearing 9-17-5mm
Traxxas - 15 - 12 All Models - Bearing 9-17-5mm
Traxxas - 25 All Models - Bearing 9-17-5mm

Cross References

SKF 628-9-2Z
WIB 628-9-2Z
WIB 628-9-Z
Shielded Width A 689/5
Shielded 689A / 5
NTN 689-ZZ
NTN W689-ZZ
ADR X9-ZZ
W689ZZ
X9ZZ
L1790ZZ
L1790-ZZ
62892Z
6289Z
689A-ZZMC3
689AZZMC3
689A Basic Size Ref
