SMR149A-ZS-MC3 - Datasheet
MBA
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings

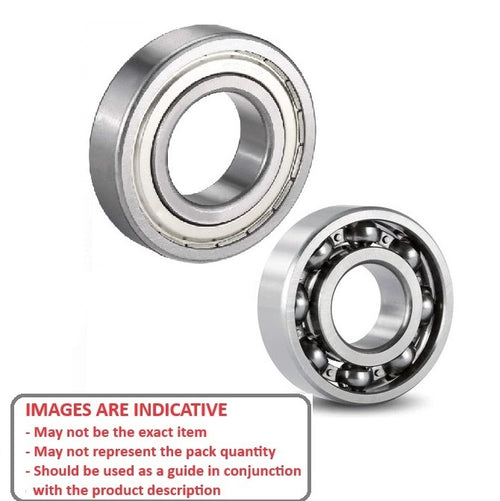

- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

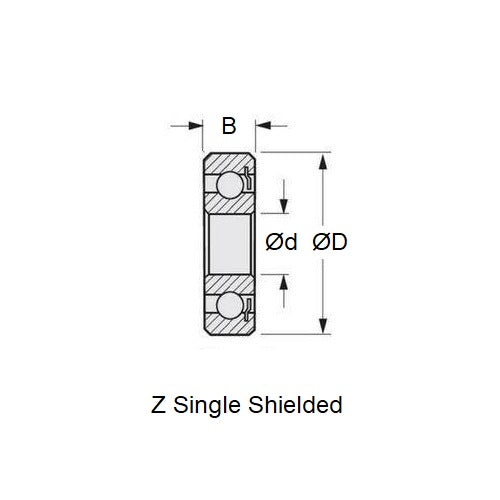

- ID (d)
:
9.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.354 in.) - OD (D)
14.000
mm
+ 0.000 / - 0.0075
(Equiv. 0.551 in.) - Width (B)
4.500
mm
+ 0.000 / - 0.125
(Equiv. 0.177 in.) - Precision Grade Abec 1
- Closure Type ZS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part MR149A
- Limiting Speed 36000
- Cage Type Crown
- Static Load Rating KGf 47
- Dynamic Load Rating KGf 93
- Radii 0.10 mm
- Inner Shoulder (UI) 10.30mm
- Outer Shoulder (UO) 13.20 mm
- Number of Balls 12
- Clearance MC3 (5 to 10)
- Precision Grade Abec 1
- Closure Type ZS
- Max Temperature 120 Deg. C
