2R-0090-0140-0300-KS3O - Datasheet
ExaktKey
Category Information

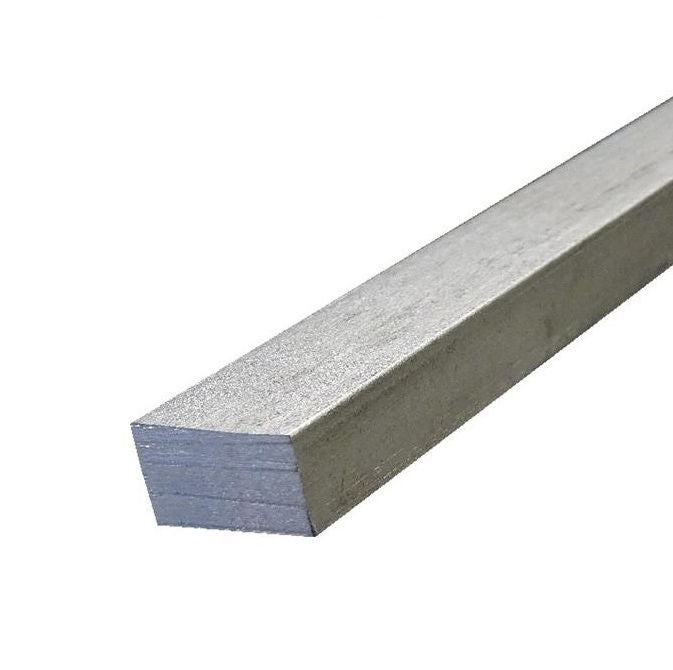

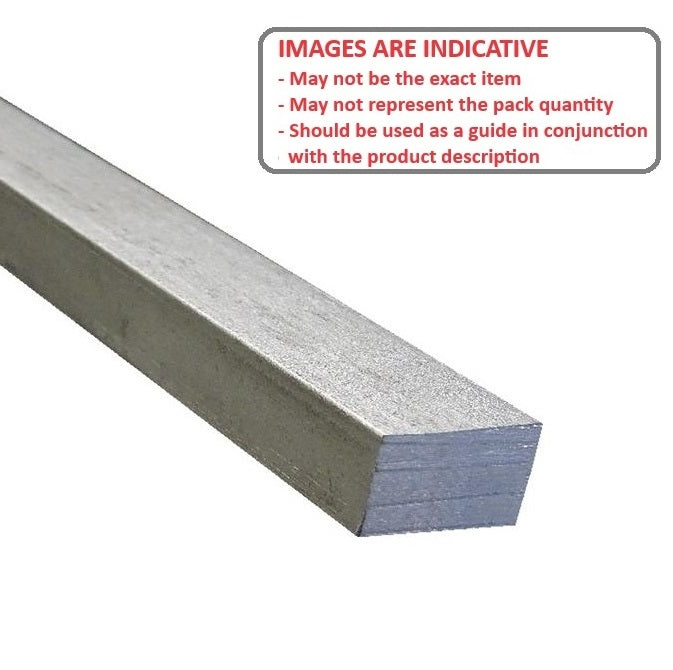

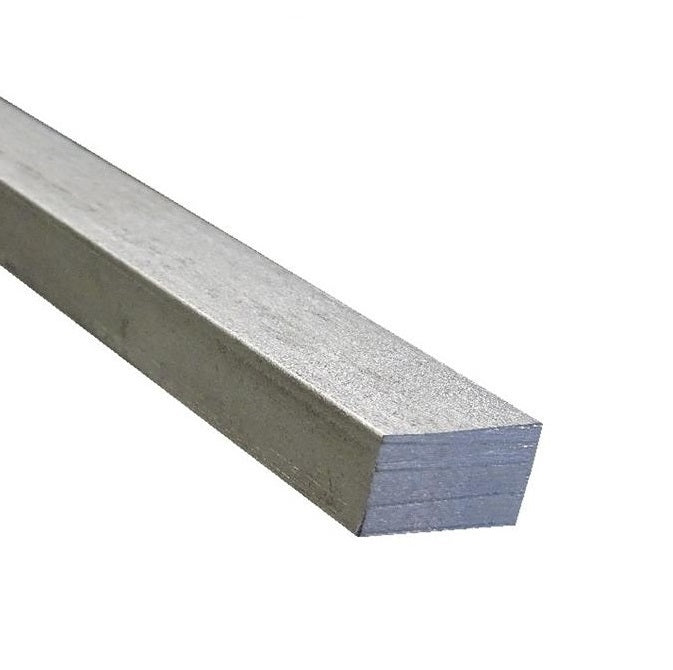

Keysteel Lengths - Rectangular - Stainless SteelStainless Steel Rectangular Keysteel Lengths. 303, 304 and 316 key steel. Rectangular stainless steel bar that can be used for keysteel or for small construction projects.
- An expanded range may be available on special order. Please enquire.
- Use oversized for replacing keys where the keyway may be slightly worn - standard aftermarket keysteel
- Use undersized for manufacturing and new applications where the keyway tolerances can be controlled
Product Data
- Width (s1)
:
9.000
mm
+ 0.076 / - 0.00
(Equiv. 0.354 in.) - Height (s2)
14.000
mm
+ 0.076 / - 0.00
(Equiv. 0.551 in.) - Length (L)
300
mm
+ 8.0 / - 3.2
(Equiv. 11.811 in.) - Tolerance Type Oversized
- Blue End Colour Code
- Material Stainless Steel 303 (Similar to A2, 304, 18-8)
Product Compliance and Data
Additional Resources
Cross References
- NoCor 751409-305
- 98810A160
- 751409305
