Miniature Bearings Australia
BP0090-0120-0040-BLG - Datasheet
MBA
Category Information

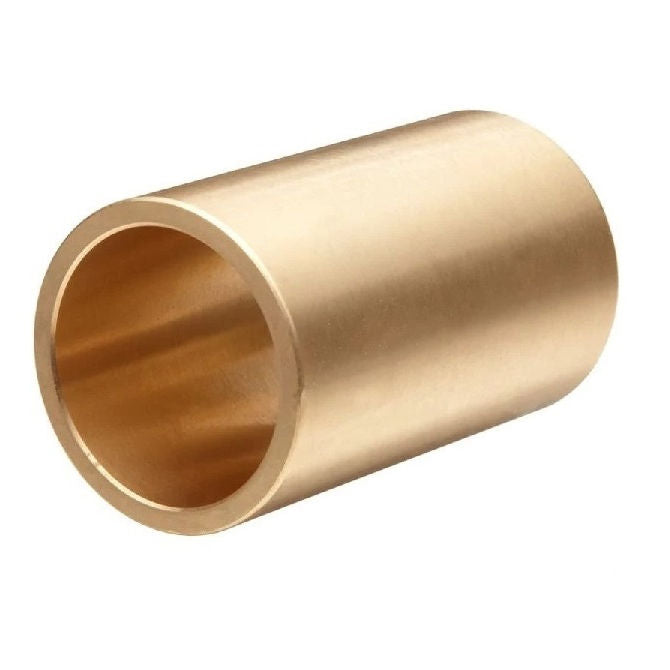

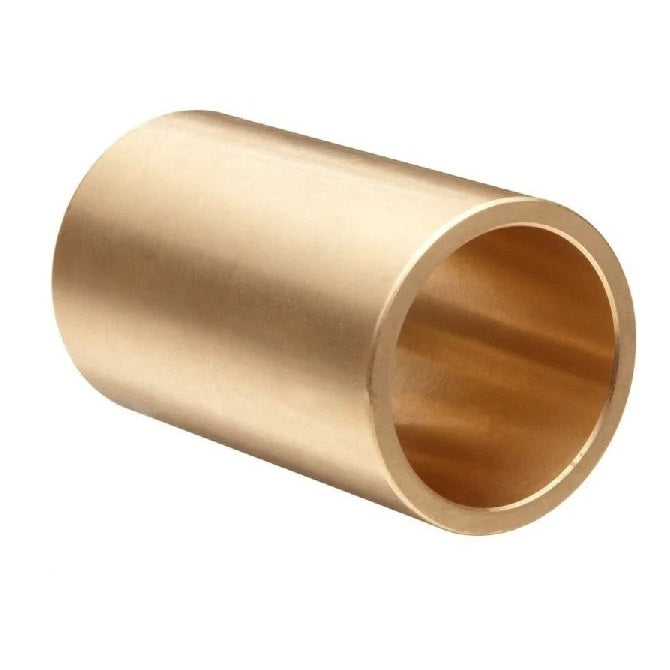

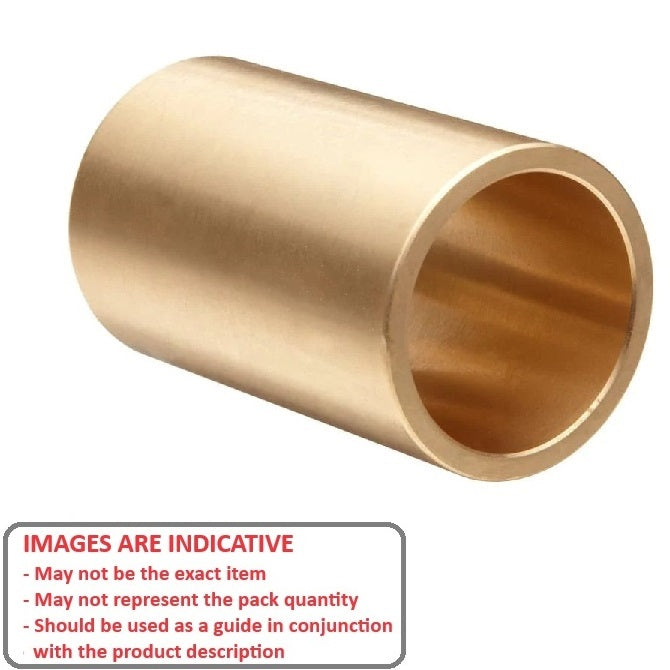

Bushes - Unflanged - Bronze - SolidSolid Bronze Unflanged Bushes. Solid precision leaded gunmetal bronze bushes. C93200 as indicated in the listings.
- An expanded range may be available on special order. Please enquire.
- Composition (Approx.) : Copper 81%, Tin 7%, Zinc 4%, Lead 6%, Nickel 2%.
- Hardness : 70-90 BHN.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Nominal Inside Diameter (d)
:
9.000
mm
+/- 0.0254
(Equiv. 0.354 in.) - Nominal Outside Diameter (D)
12.000
mm
- 0.002 / - 0.009
(Equiv. 0.472 in.) - Length (s)
4.000
mm
+/- 0.127
(Equiv. 0.157 in.) - Material Bronze LG2
Product Compliance and Data
Additional Resources
- DU Bush Material Information
- General Bushes Catalogue
- Sintered Bronze Products Catalogue
- Solid Bronze Bushes catalogue
Cross References
- Bunting BB-0608-02
- Century CB-0608-01
- BB060802
- CB060801
